Assembling the smallest Voron printer
Mike Thomas
Created , last modified
CoreXYVoron
Table of contents
Sourcing Parts
After having to source my own parts for the Voron 1.8 as kits were not available, to keep costs down, I have decided to order a Formbot kit that contains all of the parts required to build the printer.
Fasteners
Frame Extrusions
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Makerbeam XL 15x15 200mm | 16 | 16 | In LDO V0.2 Frame Kit |
| Makerbeam XL 15x15 100mm | 3 | Not Required, Using LDO Kirigami Bed Mount Kit instead | |
| Kirigami Bed Mount | 1 | 1 | LDO Kirigami Bed Mount Kit |
| Siboor CNC Slide Back Plate | 1 | 1 | |
| Fysetc Profile Installation Helper | 1 | 1 |

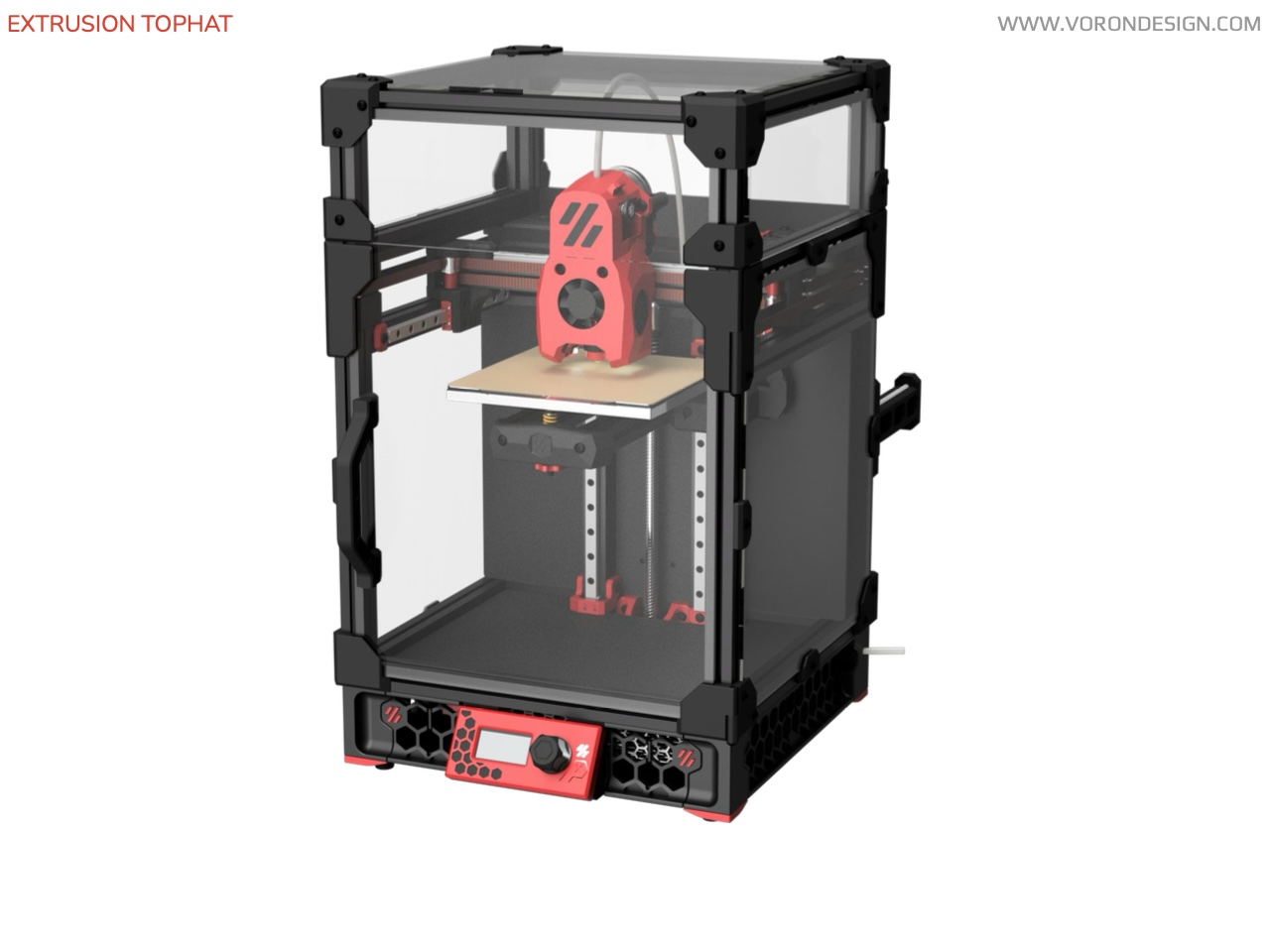

Extrusion Tophat Frame Extrusions
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Makerbeam XL 15x15 200mm | 4 | 4 | In LDO V0.2 Frame Kit |
| Makerbeam XL 15x15 80-100mm | 4 | 4 | 100mm In LDO V0.2 Frame Kit |
Electronics
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Meanwell LRS-150-24 | 1 | 1 | |
| Bigtreetech SKR Pico | 1 | 1 | |
| Raspberry Pi 4 | 1 | 1 | |
| MicroSD Card | 1 | 1 | |
| NEMA14 Stepper Motor 40Ncm | 2 | 2 | Moons Sepper Motors |
| NEMA17 Stepper Motor w/ integrated lead screw 200mm T8x8 | 1 | 1 | Moons Sepper Motor |
| 3010 blower fans 24V | 2 | 2 | GDSTime Fans |
| 3010 axial fan 24V | 2 | 2 | LDO Fans |
| 3510 axial fan 24V | 4 | 5 | GDSTime Fans |
| Omron Mouse Button - Micro Switch | 1 | 1 | |
| C13 Power Cord | 1 | 1 | |
| IEC320 C14 inlet | 1 | 1 | |
| Hotend | 1 | 1 | |
| 24V Heater Cartridge | 1 | 1 | |
| Hotend thermistor | 1 | 1 | |
| 3M 5952 VHB tape | 1 | 1 | |
| Fysetc Neopixel Sequins | 2 | 4 | |
| V0 Display | 1 | 1 | |
| Wago connectors (221-412) | 2 | 2 | |
| 100R resistor PCB for NeoPixels | 2 | 2 |
Cables
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Insulated Crimp Receptical | 4 | Kit comes with pre-made wiring harness | |
| High Flex Wire 22gauge 100ft | 1 | Kit comes with pre-made wiring harness | |
| High Flex Wire 20gauge 10ft | 1 | Kit comes with pre-made wiring harness | |
| Wire 18gauge 10ft | 1 | Kit comes with pre-made wiring harness | |
| Umbilical PCB Boards | 1 | 1 | LDO Picobilical PCB kit |
| Thermal Fuse 125C | 1 | 5 | 120C |
| JST connectors (2pin 3pin 4pin) | ? | Kit comes with pre-made wiring harness | |
| Microfit3 Dual Row (10circuits) Male & Female Plug | 1 | Kit comes with pre-made wiring harness | |
| 7mm x 7mm cable chain (less than 1/2 meter needed) | 1 | 1 | |
| Cable Clips | 5 | 5 | Replace with Cable Trunking Raceway Kit |
| Nylon Cable Ties (1.8mm wide or smaller) | 50 | 100 |
Motion
| Item | Quantity | Received | Notes |
|---|---|---|---|
| F623-RS Bearing | 24 | 24 | Fushi Bearings |
| MGN7H Linear Rail with Carriage - 150mm | 5 | 5 | |
| LDO 0.2 Nut Bar Mount | 5 | 5 | |
| GT2 20T (5mm ID 6mm W) | 2 | 2 | |
| GT2 Open Belt (6mm W) - 3000mm | 1 | 1 | |
| T8x8 Anti-backlash Flange Nut | 1 | 1 |
Buildplate
| Item | Quantity | Received | Notes |
|---|---|---|---|
| MIC6 1/4" Plate - 120x120mm | 1 | 1 | |
| Silicone DC 24V Heater 100x100mm 60W | 1 | 1 | |
| PEI + 3M 468MP (200MP) | 1 | Already applied to Flex Buildplate | |
| yellow die springs 8x4x20mm | 3 | 3 | |
| Spring Steel Flex Buildplate 120x120mm (OPTIONAL) | 1 | 1 | Kit comes with Double-Sided Magnetic Flexible PEI Sheet |
Panels
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Acrylic Sheet Clear - 212x230x3mm | 2 | Not required as using Linneo RGBW LED Side Panels | |
| Acrylic Sheet Clear - 212x239x3mm | 1 | Not Required as using LDO Mini-Fridge Door Kit | |
| Acrylic Sheet Smoked - 168x180x3mm | 2 | 2 | Linneo RGBW LED Side Panels |
| RGBW LED Side Panel PCB | 2 | 2 | Linneo RGBW LED Side Panels |
| Upper Rear Panel 212x63x3mm | 1 | 1 | Linneo Orange ACM |
| Lower Rear Panel 212x185x3mm | 1 | 1 | Linneo Orange ACM |
| Deck Panel 3mm thick (See DXF) | 1 | 1 | Linneo Orange ACM |
| Motor Panel 3mm thick (See DXF) | 1 | Not required as using LDO Picobilical PCB kit | |
| Bottom Panel 3mm thick (See DXF) | 1 | 1 | Linneo Orange ACM |
| Mid Panel 3mm thick (See DXF) | 1 | 1 | Linneo Orange ACM |
Bowden
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Bowden Fitting | 2 | 2 | |
| Bowden Tube 4x3mm - 1m | 1 | 1 |
Misc
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Little Rubber Feet | 4 | 4 | |
| Bowden Tube 4x2mm - 1m | 1 | 1 | |
| Medium Strength Thread Locker | 1 | 1 | |
| 6mm x 3mm Round Neodymium Magnets | 8 | 8 |
Extrusion Tophat Panels
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Top Panel 212x212mm | 1 | 1 | Linneo 100mm Top Hat Kit |
| Side Panels 212x(71-91)mm | 4 | 3 | Linneo 100mm Top Hat Kit. 1 Not Required as I am using the LDO Mini-Fridge Door |
Extruder
| Item | Quantity | Received | Notes |
|---|---|---|---|
| NEMA14 36mm pancake Motor with 10 tooth gear | 1 | 1 | Moons Sepper Motor |
| Bondtech BMG Extruder Kit | 1 | 1 | |
| MR85 Bearing | 2 | 2 |
Mini-Fridge Door
| Item | Quantity | Received | Notes |
|---|---|---|---|
| Ø5x40mm Shaft | 4 | 4 | LDO Mini-Fridge Door Kit |
| 5mm ID, 7mm OD, 8mm Long Sleeve Bearing | 4 | 4 | LDO Mini-Fridge Door Kit |
| 6mm x 3mm Round Neodymium Magnets | 12 | 12 | LDO Mini-Fridge Door Kit |
| Door Panel 310x210mm | 1 | 1 | Linneo Voron 0.2 Mini Fridge PC Door Panel |
| M3x8 BHCS | 10 | 10 | LDO Mini-Fridge Door Kit |
| M3x8 SHCS | 2 | 2 | LDO Mini-Fridge Door Kit |
| M3x16 BHCS | 4 | 4 | LDO Mini-Fridge Door Kit |
| Makerbeam XL 15x15 200mm | 2 | 2 | LDO Mini-Fridge Door Kit |
| Makerbeam XL 15x15 330mm | 2 | 2 | LDO Mini-Fridge Door Kit |
Printing Parts
Tools
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| MGN7_Rail_Guide | 2 | eSun ABS+ (Black) | 0.64m | 1.64g | £0.03 | ✔️ | |
| Swiss_Army_Jig | 1 | eSun ABS+ (Black) | 1.56m | 3.97g | £0.07 | ✔️ | |
| NoDropNut_12mm | ? | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by zruncho. These are for the front idlers. | |||
| NoDropNut_15mm | ~120 | eSun ABS+ (Black) | 0.10m | 0.26g | 0.00 | 49 | This is a Voron Users Mod by zruncho |
Frame
Image © 2023 Voron Design
✅ Linear Rails

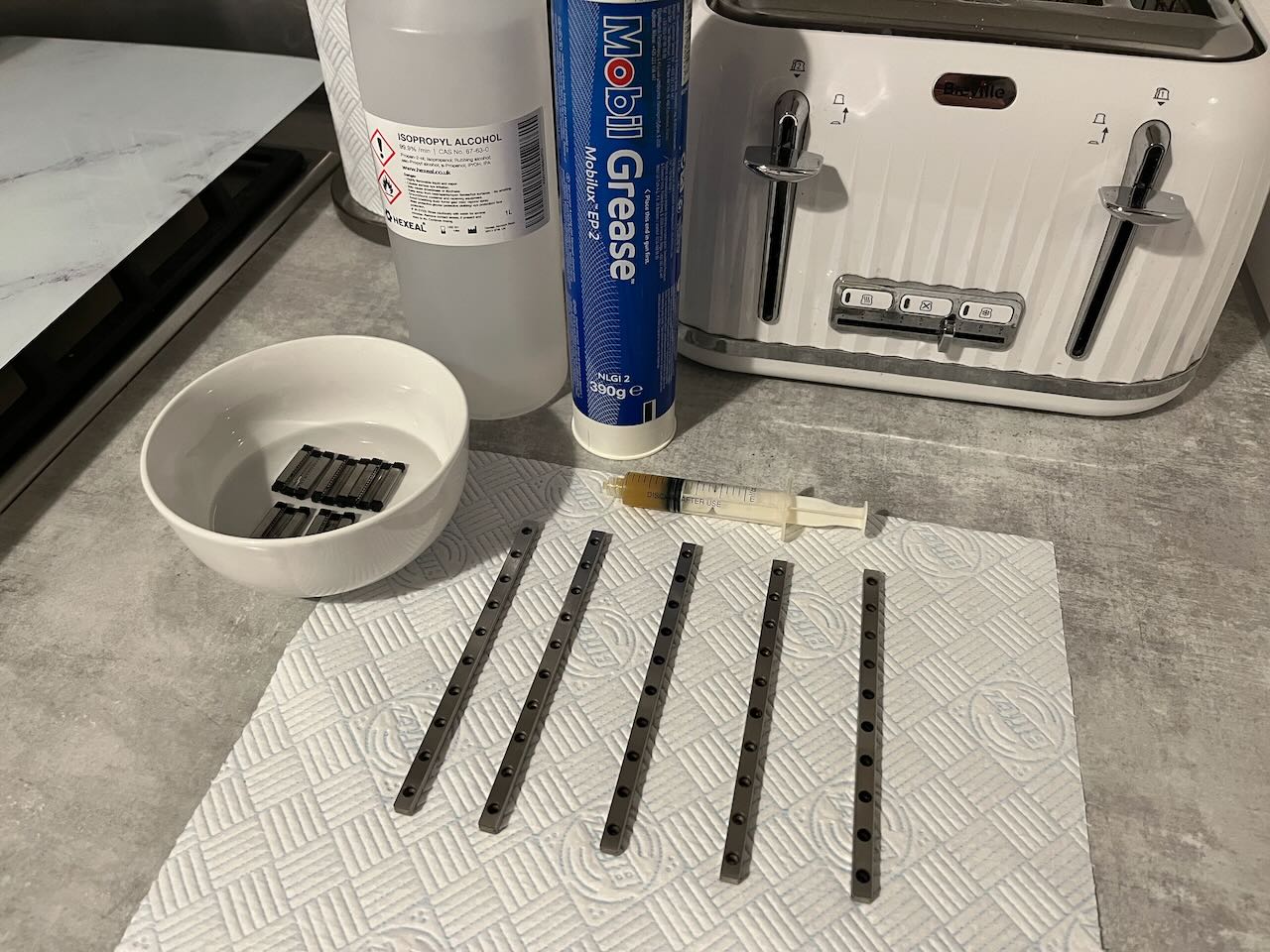

The linear rails come delivered with a coating of oil to prevent rust during storage and shipping. This coating is not a lubricant and needs to be removed before applying a coating of grease to the bearing surfaces.
I carefully removed the carriages from the rails and soaked them in Isopropyl alcohol for a few hours, then let them air dry before applying Mobil EP2 grease with a syringe directly to the ball bearings. I then reassembled the rails and applied more grease through one of the mounting holes behind the carriage.
❎ Y Rails
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| M2_Nut_Adapter_Rotated | 2 | eSun ABS+ (Black) | ❌ | Will replace with 2 LDO Rail Mounts | |||
| Railstops | 2 | eSun ABS+ (Orange) | ❌ |
❎ Z Rails
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| M2_Nut_Adapter_Rotated | 2 | eSun ABS+ (Black) | ❌ | Will replace with 2 LDO Rail Mounts | |||
| Railstops | 2 | eSun ABS+ (Orange) | ❌ |
❎ Z Axis
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Railstops | 1 | eSun ABS+ (Orange) | ❌ | Replace with Z cover mod |
❎ Bed Carrier
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Front_Bed_Mount | 1 | eSun ABS+ (Black) | ❌ | Not Required as I will be using the LDO Kirigami bed mount. | |||
| Rear_Bed_Mount_Left | 1 | eSun ABS+ (Black) | ❌ | Not Required as I will be using the LDO Kirigami bed mount. | |||
| Rear_Bed_Mount_Right | 1 | eSun ABS+ (Black) | ❌ | Not Required as I will be using the LDO Kirigami bed mount. |
❎ Kirigami Bed
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Kirigami_Bed_Spacer | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by stvptrsn | |||
| Kirigami_LDO_Breakout_Mount | 1 | eSun ABS+ (Black) | ❌ | This is a LDO Kirigami Bed Part. Not Required as this is replaced by the Kirigami Bed Brace + Fan | |||
| Stealth_Bed_Main_Body | 1 | eSun ABS+ (Black) | ❌ | This is a LDO Kirigami Bed Part | |||
| Stealth_Bed_Diffuser | 1 | BasicFil PETG (Clear) | ❌ | This is a LDO Kirigami Bed Part, Not Required as I have a Resin Printed one. | |||
| stealth_chain_mount | 1 | eSun ABS+ (Black) | ❌ | This is a Kirigami Bed Part | |||
| stealth_chain_mount_5mm_spacer | 1 | eSun ABS+ (Black) | ❌ | This is a Kirigami Bed Part | |||
| stealth_nut_block | 1 | eSun ABS+ (Black) | ❌ | This is a Kirigami Bed Part | |||
| stealth_wire_guide | 1 | eSun ABS+ (Black) | ❌ | This is a Kirigami Bed Part |
❎ Kirigami Bed Brace + Fan
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Kirigami brace LDO 3 x wagos with 3010 Fan | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by driftrotor |
❎ Z Endstop
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Z_Endstop_Mount | 1 | eSun ABS+ (Orange) | ❌ | Replace with Z cover mod | |||
| deck_plate_cover | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by MarekZCMB |

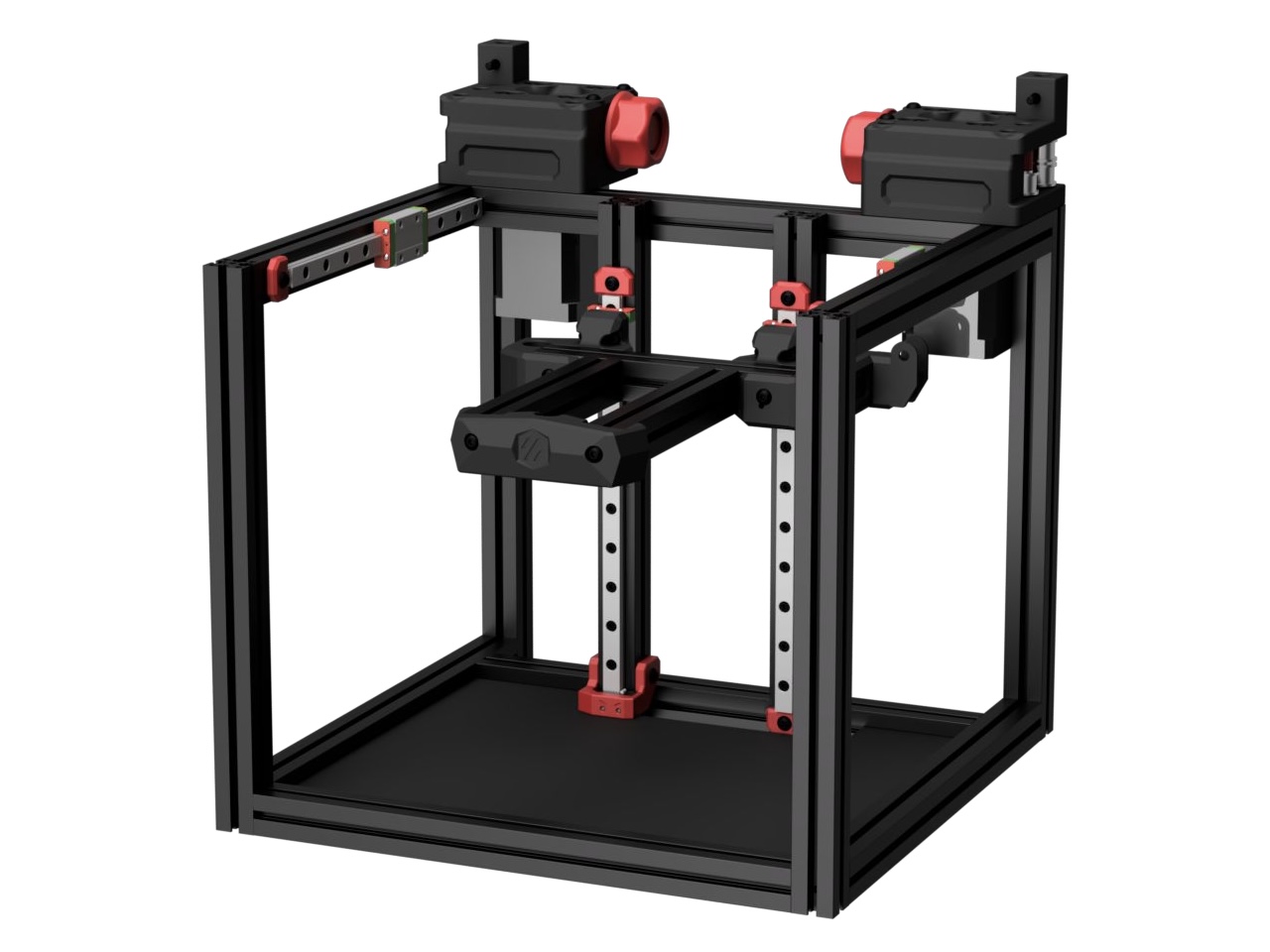

A/B Drives
Image © 2023 Voron Design
❎ A Drive
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| A_Drive_Frame_Lower | 1 | eSun ABS+ (Black) | 9.61m | 24.51g | £0.42 | ✔️ | |
| A_Drive_Frame_Upper | 1 | eSun ABS+ (Black) | 5.91m | 15.07g | £0.26 | ✔️ | |
| 9mm_Spacer | 1 | eSun ABS+ (Orange) | ❌ | ||||
| A_Drive_Tensioner | 1 | eSun ABS+ (Orange) | ❌ | ||||
| Tensioner_Knob | 1 | eSun ABS+ (Orange) | ❌ |
❎ B Drive
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| B_Drive_Frame_Lower | 1 | eSun ABS+ (Black) | 9.62m | 24.52g | £0.42 | ✔️ | |
| B_Drive_Frame_Upper | 1 | eSun ABS+ (Black) | 5.91m | 15.07g | £0.26 | ✔️ | |
| 9mm_Spacer | 1 | eSun ABS+ (Orange) | ❌ | ||||
| B_Drive_Tensioner | 1 | eSun ABS+ (Orange) | ❌ | ||||
| Tensioner_Knob | 1 | eSun ABS+ (Orange) | ❌ |
A/B Idlers
Image © 2023 Voron Design
❎ A Idler
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| A_Idler_Lower | 1 | eSun ABS+ (Black) | 1.45m | 3.70g | £0.06 | ✔️ | |
| A_Idler_Upper | 1 | eSun ABS+ (Black) | 2.76m | 7.04g | £0.12 | ✔️ | |
| Idler_Cam_Lock | 1 | eSun ABS+ (Orange) | ❌ |
❎ B Idler
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| B_Idler_Lower | 1 | eSun ABS+ (Black) | 2.47m | 6.31g | £0.11 | ✔️ | |
| B_Idler_Upper | 1 | eSun ABS+ (Black) | 1.74m | 4.43g | £0.08 | ✔️ | |
| Idler_Cam_Lock | 1 | eSun ABS+ (Orange) | ❌ |
Z Axis
Image © 2023 Voron Design
❎ Leadscrew Nut
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| T8_Nut_Block | 1 | eSun ABS+ (Black) | ❌ | Not Required as this is replaced by the Kirigami Bed nut block |
❎ Feet
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Foot_Front_Left | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Foot_Front_Right | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Foot_Rear_Left_Inlet | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Foot_Rear_Right_Plain | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Foot_Accent_A | 2 | eSun ABS+ (Orange) | ❌ | ||||
| Foot_Accent_B | 2 | eSun ABS+ (Orange) | ❌ |
❎ Stealth Skirts Extended Feet
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| feet-accent-m | 2 | eSun ABS+ (Orange) | ❌ | This is a Mod by Smolboi | |||
| feet-accent | 2 | eSun ABS+ (Orange) | ❌ | This is a Mod by Smolboi | |||
| Back_Left_Foot_inlet | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by Smolboi | |||
| Back_Right_Foot_FS | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by Smolboi | |||
| Front_Left_Foot-extend | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by Smolboi | |||
| Front_Right_Foot-extend | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by Smolboi |
❎ Leadscrew
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Z_Motor_Mount | 1 | eSun ABS+ (Orange) | ❌ |
X Axis
Image © 2023 Voron Design
❎ XY Joint Left
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| XY_Joint_Left_Lower | 1 | eSun ABS+ (Black) | ❌ | ||||
| XY_Joint_Left_Upper | 1 | eSun ABS+ (Black) | ❌ | ||||
| 9mm_Spacer | 2 | eSun ABS+ (Orange) | ❌ |
❎ XY Joint Right
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| XY_Joint_Right_Lower | 1 | eSun ABS+ (Black) | ❌ | ||||
| XY_Joint_Right_Upper | 1 | eSun ABS+ (Black) | ❌ | ||||
| 9mm_Spacer | 2 | eSun ABS+ (Orange) | ❌ |
❎ X Axis
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| M2_Nut_Adapter_Rotated | 1 | eSun ABS+ (Black) | ❌ | Will replace with 1 LDO Rail Mount |
❎ Adafruit Y Rails
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| body-left | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by QuackProfit | |||
| body-right | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by QuackProfit | |||
| cover-left | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by QuackProfit | |||
| cover-right | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by QuackProfit |
A/B Belts
Image © 2023 Voron Design
❎ X Carriage
NOTE: These parts are not required when using the Siboor CNC Slide Back Plate.
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| X_Carriage | 1 | eSun ABS+ (Black) | ❌ | Replace with X Carriage with Inserts mod | |||
| X_Carriage_Inserts | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by chirpy2605 |
Print Bed
Image © 2023 Voron Design
❎ Print Bed
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Thumb_Nut | 3 | eSun ABS+ (Orange) | ❌ | May substitute these for metal ones |
Print Head
Image © 2023 Voron Design
❎ Mini Stealthburner
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Strain_Relief_Body | 1 | eSun ABS+ (Black) | ❌ | Not Required as this will be replaced by the Picobilical Version | |||
| Strain_Relief_Spacer | 2 | eSun ABS+ (Black) | ❌ | ||||
| Guidler | 1 | eSun ABS+ (Orange) | ❌ | ||||
| Latch | 1 | eSun ABS+ (Orange) | ❌ | ||||
| MiniSB_Cowling | 1 | eSun ABS+ (Orange) | ❌ | Not Required as this will be replaced by Multi-color Mini Stealthburner | |||
| MiniSB_MidBody | 1 | eSun ABS+ (Orange) | ❌ | ||||
| MiniSB_Motor_Plate | 1 | eSun ABS+ (Orange) | ❌ | ||||
| Shuttle | 1 | eSun ABS+ (Orange) | ❌ |
❎ Multi-color Mini Stealthburner
I will print this using the Multi-Colour Prints with a Single Nozzle guide. The main colour will be Orange with Accents in Black.
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| MiniSB_Hex_Centred | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by Jadecky3D |
❎ Hotend Mount
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| FS_Hotend_Mount_Formbot | 1 | eSun ABS+ (Orange) | ❌ | Formbot, Fan Saver Version |
❎ AXDL345 Mount
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| MiniSB_adxl_mount_ldo_15mm | 1 | eSun ABS+ (Black) | ❌ | LDO Version, Not required as Picobilical has ADXL sensor on toolhead board |
❎ Picobilical
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| toolhead_spacer_v02 | 1 | eSun ABS+ (black) | ❌ | This is a LDO Picobilical Part |
Electronics & Wiring
Image © 2023 Voron Design
❎ Rear Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| PCB_DIN_Clip | 2 | eSun ABS+ (Black) | ❌ | ||||
| RPi_or_BTT-Pico_Mount | 2 | eSun ABS+ (Black) | ❌ | ||||
| VHB_Din_Mount | 2 | eSun ABS+ (Black) | ❌ | May replace with actual DIN Rail |
❎ Bottom Compartment
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Fan_Mount_Bottom | 1 | eSun ABS+ (Black) | ❌ | Not Required as his will be replaced by LDO Bottom Fan Panel | |||
| Fan_Mount_Top | 1 | eSun ABS+ (Black) | ❌ | Not Required as his will be replaced by LDO Bottom Fan Panel | |||
| PSU_Cover | 1 | eSun ABS+ (Black) | ❌ |
❎ DIN Rail Mount
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| DIN_Rail_Mount | 2 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by chirpy2605 |
❎ MF Nano
The MF Nano is a tiny recirculating carbon filter for the Voron V0 designed by MapleLeafMakers.
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| cartridge_body | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by MapleLeafMakers | |||
| cartridge_lid | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by MapleLeafMakers | |||
| magclip | 2 | eSun ABS+ (Black) | ❌ | This is a Mod by MapleLeafMakers | |||
| plenum_body | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by MapleLeafMakers | |||
| plenum_lid | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by MapleLeafMakers |
Assembly
Parts Used
| Item | Quantity |
|---|---|
| M3x6 BHCS | 5 |
| M3x16 BHCS | 2 |
| 4x6mm Neodimium Magnet | 8 |
| 6x3mm Neodimium Magnet | 12 |
| M3 Threaded Insert | 3 |
| 50x50x15 Centrifugal Fan (24V) | 1 |
Skirts & Panels
Image © 2023 Voron Design
I Plan on replacing the stock Trident style skirts with the Stealth Skirts Mod by Maverick. The first 10 layers of the skirt parts will be printed in Orange and then I will perform a filament swap to Black to achieve two-tone skirts.
❎ Fan Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Fan Panel Left | 1 | eSun ABS+ (Black) | ❌ | This is a LDO Part | |||
| Fan Panel Right | 1 | eSun ABS+ (Black) | ❌ | This is a LDO Part |
❎ Left Side Skirts
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Side_Skirt | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Side_Skirt_Mirror | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod |
❎ Left Side Stealth Skirts
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| 3510_Fan_Grill | 1 | eSun ABS+ (Orange) | ❌ | This is a Voron Users Mod by Maverick | |||
| 3510_Side_Skirt_Mid | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Left_Side_Skirt_A | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Left_Side_Skirt_B | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Side_Logo_Insert | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick |
❎ Right Side Skirts
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Side_Skirt | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Side_Skirt_Mirror | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod |
❎ Right Side Stealth Skirts
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| 3510_Fan_Grill | 1 | eSun ABS+ (Orange) | ❌ | This is a Voron Users Mod by Maverick | |||
| 3510_Side_Skirt_Mid | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Right_Side_Skirt_A | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Right_Side_Skirt_B | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Side_Logo_Insert | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick |
❎ Rear Skirt
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Rear_Skirt | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod |
❎ Rear Stealth Skirt
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Rear_Skirt | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick |
❎ Front Skirts
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Front_Skirt_A | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Front_Skirt_B | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Stealth Skirts mod | |||
| Logo_Insert | 2 | eSun ABS+ (Orange) | ❌ | Not Required as I plan on printing the Stealth Skirts mod |
❎ Front Stealth Skirts
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Left_Front_Skirt | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Logo_Insert | 2 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick | |||
| Right_Front_Skirt | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by Maverick |
❎ Display
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Display_Knob | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Multi-color Display Faceplate | |||
| Display_Mount_Left | 1 | eSun ABS+ (Black) | ❌ | ||||
| Display_Mount_Right | 1 | eSun ABS+ (Black) | ❌ | ||||
| Display_Faceplate | 1 | eSun ABS+ (Orange) | ❌ | Not Required as I plan on printing the Multi-color Display Faceplate | |||
| Display_Diffuser | 1 | BasicFil PETG (Clear) | ❌ |
❎ Multi-color Display Faceplate
I will print this using the Multi-Colour Prints with a Single Nozzle guide. The main colour will be Orange with Accents in Black.
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Display Faceplate Multibody | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by Jadecky3D | |||
| V02 Display Knob | 1 | eSun ABS+ (Black) | ❌ | This is a Mod by Jadecky3D |
❎ Picobilical Motor Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| frame_cover_plate | 1 | eSun ABS+ (Black) | ❌ | This is a LDO Picobilical Part |
❎ Detachable Spool Holder
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Spool_Holder | 1 | eSun ABS+ (Orange) | ❌ | This is a LDO Part | |||
| Spool_Holder_Mount | 1 | eSun ABS+ (Black) | ❌ | This is a LDO Part |
❎ Rear Panels
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Middle_Clip | 2 | eSun ABS+ (Black) | ❌ | ||||
| Rear_Bottom_Left_Clip | 1 | eSun ABS+ (Black) | ❌ | ||||
| Rear_Bottom_Right_Clip | 1 | eSun ABS+ (Black) | ❌ | ||||
| TH_Hinge_A_Bottom | 1 | eSun ABS+ (Black) | ❌ | ||||
| TH_Hinge_B_Bottom | 1 | eSun ABS+ (Black) | ❌ |
❎ Left Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Left_Bottom_Front_Panel_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Left_Bottom_Rear_Panel_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Left_Top_Front_Panel_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Left_Top_Rear_Panel_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Middle_Clip | 4 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod |
❎ Left RGB Side Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Panel_Clip_Middle | eSun ABS+ (Black) | ❌ | 1 Not Required as I plan on printing the Stealth Handles mod | ||||
| Panel_Clip_Corner_Bottom_A | 1 | eSun ABS+ (Black) | ❌ | ||||
| Panel_Clip_Corner_Bottom_B | 1 | eSun ABS+ (Black) | ❌ | ||||
| Panel_Clip_Corner_Top_A | 1 | eSun ABS+ (Black) | ❌ | ||||
| Panel_Clip_Corner_Top_B | 1 | eSun ABS+ (Black) | ❌ |
❎ Right Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Middle_Clip | 4 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Right_Bottom_Front_Hinge | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Right_Bottom_Rear_Panel_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Right_Top_Left_Hinge | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod | |||
| Right_Top_Rear_Panel_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the RGB Side Panels mod |
❎ Right RGB Side Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Panel_Clip_Middle | eSun ABS+ (Black) | ❌ | 1 Not Required as I plan on printing the Stealth Handles mod | ||||
| Panel_Clip_Corner_Bottom_Hinge | 1 | eSun ABS+ (Black) | ❌ | ||||
| Panel_Clip_Corner_Bottom_B | 1 | eSun ABS+ (Black) | ❌ | ||||
| Panel_Clip_Corner_Top_Hinge | 1 | eSun ABS+ (Black) | ❌ | ||||
| Panel_Clip_Corner_Top_B | 1 | eSun ABS+ (Black) | ❌ |
❎ Stealth Handles
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| handle_a | 1 | eSun ABS+ (Orange) | ❌ | This is a Maple Leaf Makers Part, may need to modify to fit RGB Side Panels mod | |||
| handle_b | 1 | eSun ABS+ (Orange) | ❌ | This is a Maple Leaf Makers Part, may need to modify to fit RGB Side Panels mod |
❎ Front Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| Door_Handle | 1 | eSun ABS+ (Orange) | ❌ | Not Required as I plan on printing the Mini-Fridge Door mod | |||
| Door_Latch | 2 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Mini-Fridge Door mod | |||
| Front_Bottom_Left_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Mini-Fridge Door mod | |||
| Front_Bottom_Right_Hinge | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Mini-Fridge Door mod | |||
| Front_Top_Left_Clip | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Mini-Fridge Door mod | |||
| Front_Top_Right_Hinge | 1 | eSun ABS+ (Black) | ❌ | Not Required as I plan on printing the Mini-Fridge Door mod |
Extrusion Tophat
Image © 2023 Voron Design
❎ Top Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| TH_Top_Clip | 4 | eSun ABS+ (Black) | ❌ |
❎ Front & Side Panels
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| TH_Lower_Clip | 3 | eSun ABS+ (Black) | ❌ | ||||
| TH_Lower_Clip_Mirror | 3 | eSun ABS+ (Black) | ❌ | ||||
| TH_Side_Clip | 3 | eSun ABS+ (Black) | ❌ | ||||
| TH_Side_Clip_Mirror | 3 | eSun ABS+ (Black) | ❌ |
❎ Rear Panel
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| TH_Hinge_A_Top | 1 | eSun ABS+ (Black) | ❌ | ||||
| TH_Hinge_B_Top | 1 | eSun ABS+ (Black) | ❌ | ||||
| TH_Side_Clip | 1 | eSun ABS+ (Black) | ❌ | ||||
| TH_Side_Clip_Mirror | 1 | eSun ABS+ (Black) | ❌ |
❎ Camera Mount
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| picamera3stl | 1 | eSun ABS+ (Black) | ❌ | This is a Voron Users Mod by chirpy2605 |
Mini-Fridge Door
❎ Door Handle
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| handle | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by TheVoronModder | |||
| inner_latch | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by TheVoronModder | |||
| latch_a | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by TheVoronModder | |||
| latch_b | 1 | eSun ABS+ (Orange) | ❌ | This is a Mod by TheVoronModder |
❎ Hinges
| Item | Quantity | Material | Size | Weight | Cost | Printed | Notes |
|---|---|---|---|---|---|---|---|
| bottom_hinge_left | 2 | eSun ABS+ (Orange) | ❌ | This is a Mod by TheVoronModder | |||
| top_hinge_left | 2 | eSun ABS+ (Orange) | ❌ | This is a Mod by TheVoronModder |
Assembly Complete
Image © 2023 Voron Design
