Intro
This page lists all of the single board computers I own and is mainly for me to keep track of what I have and what I am currently using it for.
Arduino
Branded
Generic
| Item | Case | Flashed with | Notes |
|---|
| Arduino Mega 2560 | | Klipper Firmware | With RAMPS 1.6 + DRV8825 x 5 |
| Arduino Nano (USB C) | Robot Arm | Servo Test | With Nano Expansion Board (Blue) |
| Arduino Nano (USB C) | Robot Arm | Servo Test | With Nano Expansion Board (Red) |
| Arduino Nano (USB C) | | Blink Sketch | Sealed in original packaging |
| Arduino Nano (USB C) | | Blink Sketch | Sealed in original packaging |
| Arduino Nano (Mini USB) | | Blink Sketch | Sealed in original packaging |
| Arduino Nano (Mini USB) | | Blink Sketch | Sealed in original packaging |
| Arduino Nano (Mini USB) | | Blink Sketch | Sealed in original packaging |
| Arduino Nano (Mini USB) | My Modular Journey Tuna | Tune-O-Matic | |
| Arduino Uno | Breadboard Case | Klipper Firmware | With Arduino CNC Shield |
BBC
The micro:bit is an inexpensive board designed to teach children how to code.
BigTreeTech
BigTreeTech make mainboards to control 3D printers. 🦆
Mainboards
Canbus Boards
Auxillary Boards
Custom
Espressif
Branded
Generic
| Item | Case | Flashed with | Hostname | Notes |
|---|
| ESP-01s | ESP-01 Adapter | ESPHome | | |
| ESP-01s | DHT22 Module | ESPHome | dht22 | |
| ESP-01s | DS18B20 Module | ESPHome | ds18b20 | |
| ESP-01s | Relay Module | ESPHome | relay | |
| ESP-01s | RGB LED Module | WLED | | |
| ESP-32 Cam | ESP32 CAM MB | ESPHome | camera | |
| ESP-32 Dev Kit C V4 | ESP32 Expansion Board | | | |
Fysetc
Hardkernel
LDO Motors
Mellow
Mellow make mainboards to control 3D printers.
Next Thing Co
Dubbed as "The World's First Nine Dollar Computer" I purchased a CHIP in about November 2016 as a toy to play about with however I hardly used it and eventually the company Next Thing Co. entered insolvency it quickly became unsupported.
However mine still works albeit on a very old operating system version.
Raspberry Pi

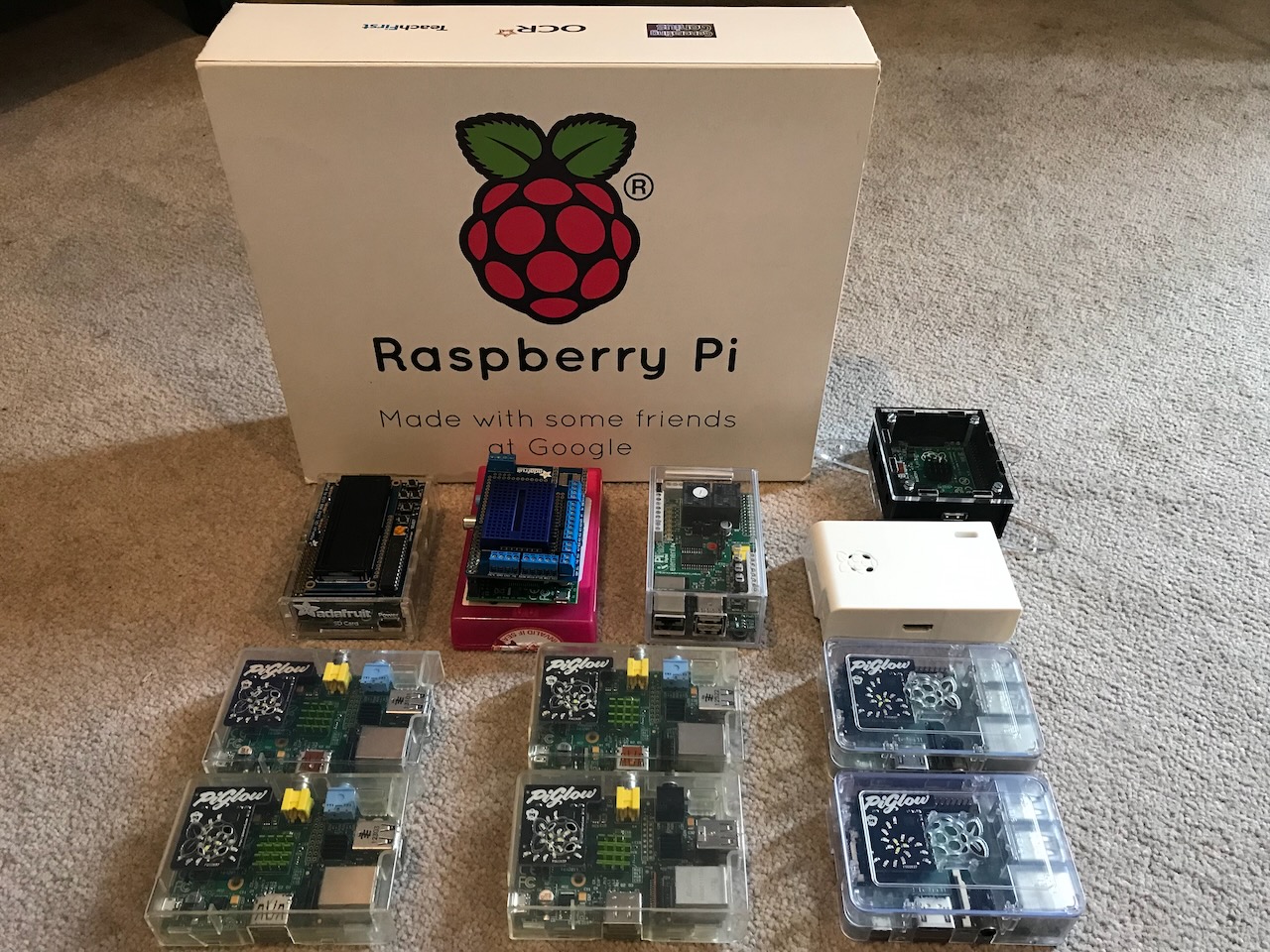

Raspberry Pi 1
Raspberry Pi A rev 2.0
Pinout
Description : Raspberry Pi A rev 2.0
Revision : 0008
SoC : BCM2835
RAM : 256MB
Storage : SD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
+------------------| |--| |------+| ooooooooooooo P1 |C|o |A| || 1oooooooooooo +-+oo+-+ || 1ooo oo || P5 oooo +---+ oo +====| |D |SoC| oo | USB| |S Pi Model +---+ oo +====| |I A V2.0 oo P3 || |0 P2 11 || C| || o S| |=pwr P6 1 |HDMI| I| |+----------------| |--0|------+
P1:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
P2:
GPU JTAG (1)
GPU JTAG (2)
GPU JTAG (3)
GPU JTAG (4)
GPU JTAG (5)
GPU JTAG (6)
GPU JTAG (7)
GPU JTAG (8)
P3:
LAN JTAG (1)
LAN JTAG (2)
LAN JTAG (3)
LAN JTAG (4)
LAN JTAG (5)
LAN JTAG (6)
LAN JTAG (7)
P5:
5V (1) (2) 3V3
GPIO28 (3) (4) GPIO29
GPIO30 (5) (6) GPIO31
GND (7) (8) GND
P6:
RUN (1)
GND (2)
For further information, please refer to https://pinout.xyz/
Raspberry Pi B rev 1.0
This is my original Raspberry Pi in an Adafruit acrylic case. I soldered the LCD display myself!
| Item | Revision | RAM | Case | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi B rev 1.0 | 0002 | 256MB | Adafruit Acrylic Case | 8GB SD Card (TDK) | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | original | With Adafruit RGB Negative 16x2 LCD |
| Raspberry Pi B rev 1.0 | 0002 | 256MB | Piface Digital Acrylic Case | | | | With PiFace Digital |
| Raspberry Pi B rev 1.0 | 0002 | 256MB | Official Raspberry Pi Case (White) | Shared with node1 | | | With Pimoroni PiGlow |
Pinout
Description : Raspberry Pi B rev 1.0
Revision : 0002
SoC : BCM2835
RAM : 256MB
Storage : SD
USB ports : 2 (of which 0 USB3)
Ethernet ports : 1 (100Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
+------------------| |--| |------+| ooooooooooooo P1 |C|o |A| || 1oooooooooooo +-+oo+-+ || oo || +---+ oo +====| |D |SoC| oo | USB| |S Pi Model +---+ oo +====| |I B V1.0 oo P3 || |0 P2 11 +======| C| | Net| S| +=======pwr |HDMI| I| |+----------------| |--0|------+
P1:
3V3 (1) (2) 5V
GPIO0 (3) (4) 5V
GPIO1 (5) (6) 5V
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO21 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
P2:
GPU JTAG (1)
GPU JTAG (2)
GPU JTAG (3)
GPU JTAG (4)
GPU JTAG (5)
GPU JTAG (6)
GPU JTAG (7)
GPU JTAG (8)
P3:
LAN JTAG (1)
LAN JTAG (2)
LAN JTAG (3)
LAN JTAG (4)
LAN JTAG (5)
LAN JTAG (6)
LAN JTAG (7)
For further information, please refer to https://pinout.xyz/
Raspberry Pi B rev 2.0
| Item | Revision | RAM | Case | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi B rev 2.0 | 000e | 512MB | Official Raspberry Pi Case (Clear) | Shared with node2 | | | With Pimoroni PiGlow |
| Raspberry Pi B rev 2.0 | 000e | 512MB | Official Raspberry Pi Case (Clear) | Shared with node3 | | | With Pimoroni PiGlow |
| Raspberry Pi B rev 2.0 | 000f | 512MB | Official Raspberry Pi Case (Clear) | Shared with node4 | | | With Pimoroni PiGlow |
| Raspberry Pi B rev 2.0 | 000f | 512MB | Official Raspberry Pi Case (Clear) | Shared with node5 | | | With Pimoroni PiGlow |
| Raspberry Pi B rev 2.0 | 000f | 512MB | | | | | Broken SD Slot |
Pinout
Description : Raspberry Pi B rev 2.0
Revision : 000e
SoC : BCM2835
RAM : 512MB
Storage : SD
USB ports : 2 (of which 0 USB3)
Ethernet ports : 1 (100Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
+------------------| |--| |------+| ooooooooooooo P1 |C|o |A| || 1oooooooooooo +-+oo+-+ || 1ooo oo || P5 oooo +---+ oo +====| |D |SoC| oo | USB| |S Pi Model +---+ oo +====| |I B V2.0 oo P3 || |0 P2 11 +======| C| | Net| o S| +=======pwr P6 1 |HDMI| I| |+----------------| |--0|------+
P1:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
P2:
GPU JTAG (1)
GPU JTAG (2)
GPU JTAG (3)
GPU JTAG (4)
GPU JTAG (5)
GPU JTAG (6)
GPU JTAG (7)
GPU JTAG (8)
P3:
LAN JTAG (1)
LAN JTAG (2)
LAN JTAG (3)
LAN JTAG (4)
LAN JTAG (5)
LAN JTAG (6)
LAN JTAG (7)
P5:
5V (1) (2) 3V3
GPIO28 (3) (4) GPIO29
GPIO30 (5) (6) GPIO31
GND (7) (8) GND
P6:
RUN (1)
GND (2)
For further information, please refer to https://pinout.xyz/
Raspberry Pi A+ rev 1.1
| Item | Revision | RAM | Case | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi A+ rev 1.1 | 0015 | 256MB | ModMyPi VESA-Pi+ Model A+ Case | | | | With Pimoroni PiGlow |
Pinout
Description : Raspberry Pi A+ rev 1.1
Revision : 0015
SoC : BCM2835
RAM : 256MB
Storage : MicroSD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------.| oooooooooooooooooooo J8 || 1ooooooooooooooooooo || || Pi Model A+ V1.1 || |D +---+ +====| |S |SoC| | USB| |I +---+ +====| |0 C| || S| || I| |A| || pwr |HDMI| 0| |u| |`-| |------| |-----|x|--'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
Raspberry Pi B+ rev 1.2
| Item | Revision | RAM | Case | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi B+ rev 1.2 | 0010 | 512MB | CanaKit Raspberry Pi Case (Clear) | 8GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Bullseye | | With Pimoroni PiGlow |
| Raspberry Pi B+ rev 1.2 | 0013 | 512MB | CanaKit Raspberry Pi Case (Clear) | 8GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Bullseye | | With Pimoroni PiGlow |
Pinout
Description : Raspberry Pi B+ rev 1.2
Revision : 0010
SoC : BCM2835
RAM : 512MB
Storage : MicroSD
USB ports : 4 (of which 0 USB3)
Ethernet ports : 1 (100Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +====| 1ooooooooooooooooooo | USB| +====| Pi Model B+ V1.2 || |D +---+ +====| |S |SoC| | USB| |I +---+ +====| |0 C| || S| +======| I| |A| | Net| pwr |HDMI| 0| |u| +======`-| |------| |-----|x|--------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
Raspberry Pi 2
Raspberry Pi 2B rev 1.1
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 2B rev 1.1 | a01041 | 1GB | Cluster Case | Anker PowerPort 6 (White) | 16GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | node1 | |
| Raspberry Pi 2B rev 1.1 | a01041 | 1GB | Cluster Case | Anker PowerPort 6 (White) | 16GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | node2 | |
| Raspberry Pi 2B rev 1.1 | a01041 | 1GB | Cluster Case | Anker PowerPort 6 (White) | 16GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | node3 | |
| Raspberry Pi 2B rev 1.1 | a01041 | 1GB | Cluster Case | Anker PowerPort 6 (White) | 16GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | node4 | |
| Raspberry Pi 2B rev 1.1 | a01041 | 1GB | Cluster Case | Anker PowerPort 6 (White) | 16GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | node5 | |
Pinout
Description : Raspberry Pi 2B rev 1.1
Revision : a01041
SoC : BCM2836
RAM : 1GB
Storage : MicroSD
USB ports : 4 (of which 0 USB3)
Ethernet ports : 1 (100Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +====| 1ooooooooooooooooooo | USB| +====| Pi Model 2B V1.1 || |D +---+ +====| |S |SoC| | USB| |I +---+ +====| |0 C| || S| +======| I| |A| | Net| pwr |HDMI| 0| |u| +======`-| |------| |-----|x|--------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
Raspberry Pi 2B rev 1.2
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 2B rev 1.2 | a02042 | 1GB | Flirc Aluminium Case | Clearain Micro USB with Switch | 16GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (Legacy, 32-bit) - Bullseye | piaware | Boxed With FlightAware Pro Stick Plus, ADS-B installed via Docker |
Pinout
Description : Raspberry Pi 2B rev 1.2
Revision : a02042
SoC : BCM2837
RAM : 1GB
Storage : MicroSD
USB ports : 4 (of which 0 USB3)
Ethernet ports : 1 (100Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +====| 1ooooooooooooooooooo | USB| +====| Pi Model 2B V1.2 || |D +---+ +====| |S |SoC| | USB| |I +---+ +====| |0 C| || S| +======| I| |A| | Net| pwr |HDMI| 0| |u| +======`-| |------| |-----|x|--------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
Raspberry Pi 3
Raspberry Pi 3A+ rev 1.0
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 3A+ rev 1.0 | 9020e0 | 512MB | AM8 | | 64GB MicroSD (Integral) | MainsailOS | am8 | Boxed |
Pinout
Description : Raspberry Pi 3A+ rev 1.0
Revision : 9020e0
SoC : BCM2837
RAM : 512MB
Storage : MicroSD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------.| oooooooooooooooooooo J8 || 1ooooooooooooooooooo RUN|| Wi 1o|| Fi Pi Model 3A+ V1.0 || |D ,---. +====| |S |SoC| | USB| |I `---' +====| |0 C| || S| || I| |A| || pwr |HDMI| 0| |u| |`-| |------| |-----|x|--'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
RUN:
POWER ENABLE (1)
RUN (2)
For further information, please refer to https://pinout.xyz/
Raspberry Pi 3B rev 1.2
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 3B rev 1.2 | a02082 | 1GB | CanaKit Raspberry Pi Case (Black) | iTrunk Raspberry Pi 3 Model B Power Supply | 32GB MicroSD (Sandisk Ultra) | Raspberry Pi OS with desktop (Legacy, 32-bit) - Bullseye | white | Broken Wifi and Bluetooth |
| Raspberry Pi 3B rev 1.2 | a02082 | 1GB | Waveshare Touch Screen Case | | 32GB MicroSD (Sandisk Ultra) | | | |
| Raspberry Pi 3B rev 1.2 | a02082 | 1GB | Flirc Aluminium Case | Element 14 Universal Power Supply (White) | 32GB MicroSD (Sandisk Ultra) | | | |
| Raspberry Pi 3B rev 1.2 | a02082 | 1GB | Flirc Aluminium Case | Element 14 Universal Power Supply (White) | 32GB MicroSD (Sandisk Ultra) | | | |
| Raspberry Pi 3B rev 1.2 | a22082 | 1GB | Sense HAT Case | Element 14 Universal Power Supply (Black) | 32GB MicroSD (Sandisk Ultra) | | | With Sense Hat V1 |
| Raspberry Pi 3B rev 1.2 | a22082 | 1GB | | | | | | With Cluster Hat v2.4 |
Pinout
Description : Raspberry Pi 3B rev 1.2
Revision : a02082
SoC : BCM2837
RAM : 1GB
Storage : MicroSD
USB ports : 4 (of which 0 USB3)
Ethernet ports : 1 (100Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +====| 1ooooooooooooooooooo | USB| +====| Pi Model 3B V1.2 || |D +---+ +====| |S |SoC| | USB| |I +---+ +====| |0 C| || S| +======| I| |A| | Net| pwr |HDMI| 0| |u| +======`-| |------| |-----|x|--------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
Raspberry Pi 3B+ rev 1.3
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Cluster Case | Anker PowerPort 5 (Black) | 64GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (64-bit) - Bookworm | red | With Pimoroni Blinkt |
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Cluster Case | Anker PowerPort 5 (Black) | 64GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (64-bit) - Bookworm | green | With Pimoroni Blinkt |
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Cluster Case | Anker PowerPort 5 (Black) | 64GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (64-bit) - Bookworm | blue | With Pimoroni Blinkt |
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Cluster Case | Anker PowerPort 5 (Black) | 64GB MicroSD (Sandisk Ultra) | Raspberry Pi OS Lite (64-bit) - Bookworm | black | With Pimoroni Blinkt |
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Retroflag MegaPi Case M | Generic 5V 3A Micro USB AC/DC Adapter | 16GB MicroSD (Integral) | RetroPie | megapi | With Classic USB Controller M |
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Retroflag NESPi Case+ | Generic 5V 3A Micro USB AC/DC Adapter | 16GB MicroSD (Integral) | RetroPie | nespi | With 2 Classic USB NES Controllers |
| Raspberry Pi 3B+ rev 1.3 | a020d3 | 1GB | Retroflag SuperPi Case J | Generic 5V 3A Micro USB AC/DC Adapter | 16GB MicroSD (Integral) | RetroPie | superpi | With 2 Classic USB Controller J |
Pinout
Description : Raspberry Pi 3B+ rev 1.3
Revision : a020d3
SoC : BCM2837
RAM : 1GB
Storage : MicroSD
USB ports : 4 (of which 0 USB3)
Ethernet ports : 1 (300Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 PoE +====| 1ooooooooooooooooooo 12 | USB| Wi oo +====| Fi Pi Model 3B+ V1.3 || |D ,---. 1o +====| |S |SoC| RUN | USB| |I `---' +====| |0 C| || S| +======| I| |A| | Net| pwr |HDMI| 0| |u| +======`-| |------| |-----|x|--------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
RUN:
POWER ENABLE (1)
RUN (2)
POE:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi 4
Raspberry Pi 400 rev 1.0
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 400 rev 1.0 | c03130 | 4GB | | Official Raspberry Pi 4 Power Supply (White) | 16GB MicroSD (Sandisk Edge) | Raspberry Pi OS Full (Legacy, 32-bit) - Bullseye | pi400 | Boxed Desktop Kit with DACBerry 400 S |
Pinout
Description : Raspberry Pi 400 rev 1.0
Revision : c03130
SoC : BCM2711
RAM : 4GB
Storage : MicroSD
USB ports : 3 (of which 2 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 0
Display ports (DSI): 0
,------+----+----+----+----+---+--+--+--+--------------------+---. ,' |Net |USB |USB |USB |pwr|hd|hd|sd|oooooooooooooooooooo| `. / == | | 2 | 3 | 3 | |m1|m0| |1ooooooooooooooooooo| \,------------------------------------------------------------------------.| ___ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____ o o o____ || |Esc|F111|F212|F3 |F4 |F5 |F6 |F7 |F8 |F9 |F10o|NumL|PtSq|DlIn| || ___ ___ ____ ____ ____ ____ ____ ___ ____ ____ ____ ___ ____ _______ || |¬ |! |" |£ |$ |% |^ |& 7|* 8|( 9|) *|_ |+ |BkSpc | || |` ||1 |2 |3 |4 |5 |6 |7 |8 |9 |0 |- |= |<-- | || _____ ___ ____ ____ ____ ____ ____ ___ ____ ____ ____ ____ __ ______ || |Tab |Q |W |E |R |T |Y |U 4|I 5|O 6|P -|{ |} |Enter | || |->| | | | | | | | | | | |[ |] |<-' | || ______ ____ ____ ____ ____ ____ ____ ___ ____ ____ ____ ____ __ | || |Caps |A |S |D |F |G |H |J 1|K 2|L 3|: +|@ |~ | | || |Lock | | | | | | | | | |; |' |# | | || _____ ___ ___ ____ ____ ____ ____ ____ ___ ____ ____ ____ __________ || |Shift|| |Z |X |C |V |B |N |M 0|< |> .|? /|Shift | || |^ |\ | | | | | | | |, |. |/ |^ | || ____ ___ ____ ____ _______________________ ____ ____ _____ || |Ctrl|Fn | ** |Alt | |Alt |Ctrl|____|^PgUp|____ || | | | {} | | | | |<Hom|vPgDn|>End| |`------------------------------------------------------------------------' Raspberry Pi 400 Rev 1.0
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
Raspberry Pi 4B rev 1.1
Pinout
Description : Raspberry Pi 4B rev 1.1
Revision : c03111
SoC : BCM2711
RAM : 4GB
Storage : MicroSD
USB ports : 4 (of which 2 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +======| 1ooooooooooooooooooo J14 | Net| Wi 12 +======| Fi Pi Model 4B V1.1 oo || |D ,---. +---+ +====| |S |SoC| |RAM| |USB3| |I `---' +---+ +====| |0 C| || oo1 J2 S| +====| I| |A| |USB2| pwr |hd| |hd| 0| |u| +====`-| |---|m0|---|m1|----|x|-------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J2:
GLOBAL ENABLE (1)
GND (2)
RUN (3)
J14:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi 4B rev 1.2
Pinout
Description : Raspberry Pi 4B rev 1.2
Revision : c03112
SoC : BCM2711
RAM : 4GB
Storage : MicroSD
USB ports : 4 (of which 2 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +======| 1ooooooooooooooooooo J14 | Net| Wi 12 +======| Fi Pi Model 4B V1.2 oo || |D ,---. +---+ +====| |S |SoC| |RAM| |USB3| |I `---' +---+ +====| |0 C| || oo1 J2 S| +====| I| |A| |USB2| pwr |hd| |hd| 0| |u| +====`-| |---|m0|---|m1|----|x|-------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J2:
GLOBAL ENABLE (1)
GND (2)
RUN (3)
J14:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi 4B rev 1.4
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 4B rev 1.4 | c03114 | 4GB | Official Raspberry Pi 4 Case (Red) | Official Raspberry Pi 4 Power Supply (White) | 16GB MicroSD (Sandisk Edge) | Raspberry Pi OS Full (Legacy, 32-bit) - Bullseye | | Boxed Desktop Kit with official Case Fan |
| Raspberry Pi 4B rev 1.4 | c03114 | 4GB | Official Raspberry Pi 4 Case (Red) | Official Raspberry Pi 4 Power Supply (White) | 16GB MicroSD (Sandisk Edge) | Raspberry Pi OS Full (Legacy, 32-bit) - Bullseye | | Boxed Desktop Kit with official Case Fan |
| Raspberry Pi 4B rev 1.4 | d03114 | 8GB | Cluster HAT Case v3.0 | Official Raspberry Pi 4 Power Supply (White) | 128GB MicroSD (Integral) | Raspberry Pi OS Lite (64-bit) - Bookworm ClusterCTRL | cbridge | Boxed with Cluster Hat v2.5 |
Benchmarks
Pinout
Description : Raspberry Pi 4B rev 1.4
Revision : c03114
SoC : BCM2711
RAM : 4GB
Storage : MicroSD
USB ports : 4 (of which 2 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +======| 1ooooooooooooooooooo J14 | Net| Wi 12 +======| Fi Pi Model 4B V1.4 oo || |D ,---. +---+ +====| |S |SoC| |RAM| |USB3| |I `---' +---+ +====| |0 C| || oo1 J2 S| +====| I| |A| |USB2| pwr |hd| |hd| 0| |u| +====`-| |---|m0|---|m1|----|x|-------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J2:
GLOBAL ENABLE (1)
GND (2)
RUN (3)
J14:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi 4B rev 1.5
Pinout
Description : Raspberry Pi 4B rev 1.5
Revision : c03115
SoC : BCM2711
RAM : 4GB
Storage : MicroSD
USB ports : 4 (of which 2 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 1
,--------------------------------.| oooooooooooooooooooo J8 +======| 1ooooooooooooooooooo J14 | Net| Wi 12 +======| Fi Pi Model 4B V1.5 oo || |D ,---. +---+ +====| |S |SoC| |RAM| |USB3| |I `---' +---+ +====| |0 C| || oo1 J2 S| +====| I| |A| |USB2| pwr |hd| |hd| 0| |u| +====`-| |---|m0|---|m1|----|x|-------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J2:
GLOBAL ENABLE (1)
GND (2)
RUN (3)
J14:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi 4B (Unknown)
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 4B | Unknown | 4GB | Flirc Aluminium Case | | | | | Boxed (Unopened) |
| Raspberry Pi 4B | Unknown | 4GB | Flirc Aluminium Case | | | | | Boxed (Unopened) |
Raspberry Pi 5
Raspberry Pi 5B rev 1.0
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi 5B rev 1.0 | c04170 | 4GB | Official Raspberry Pi 5 Case (Red) | Official Raspberry Pi 5 Power Supply (White) | 256GB MicroSD (Integral) | | | Boxed (Unopened) with official Active Cooler |
| Raspberry Pi 5B rev 1.0 | d04170 | 8GB | Official Raspberry Pi 5 Case (Black) | Official Raspberry Pi 5 Power Supply (Black) | 256GB MicroSD (Integral) | Raspberry Pi OS Lite (64-bit), Manually Installed KDE Plasma | raspberrypi | Boxed with official Active Cooler, Black Keyboard & Mouse |
Benchmarks
Pinout
Description : Raspberry Pi 5B rev 1.0
Revision : c04170
SoC : BCM2712
RAM : 4GB
Storage : MicroSD
USB ports : 4 (of which 2 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 2
Display ports (DSI): 2
,--------------------------------.| oooooooooooooooooooo J8 : +====| 1ooooooooooooooooooo : |USB2| Wi Pi Model 5B V1.0 fan +====| Fi +---+ +---+ || |RAM| |RP1| +====||p +---+ +---+ |USB3||c ------- +====||i SoC |c|c J14 |( ------- J7|s|s 12 +======| J2 bat uart 1|i|i oo | Net| pwr\..|hd|...|hd|o|1|0 +======`-| |-1o|m0|---|m1|--------------'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J2:
RUN (1)
GND (2)
J7:
COMPOSITE (1)
GND (2)
J14:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi Compute Module
Raspberry Pi CM rev 1.1
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi CM rev 1.1 | 0011 | 512MB | Compute Module I/O Board V1.2 | | 4GB eMMC | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | | With CMIO-DISPLAY V1.1 Adapter and CMIO-CAMERA V1.1 Adapter |
Pinout
Description : Raspberry Pi CM rev 1.1
Revision : 0011
SoC : BCM2835
RAM : 512MB
Storage : eMMC
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 2
Display ports (DSI): 2
+---------------------------------------+| O Raspberry Pi CM O | ) Version 1.1 +---+ (| |SoC| | ) +---+ (| O _ O ||||||| ||||||||||||||||||||||||||||||||||
SODIMM:
GND (1) (2) EMMC DISABLE N
GPIO0 (3) (4) NC
GPIO1 (5) (6) NC
GND (7) (8) NC
GPIO2 (9) (10) NC
GPIO3 (11) (12) NC
GND (13) (14) NC
GPIO4 (15) (16) NC
GPIO5 (17) (18) NC
GND (19) (20) NC
GPIO6 (21) (22) NC
GPIO7 (23) (24) NC
GND (25) (26) GND
GPIO8 (27) (28) GPIO28
GPIO9 (29) (30) GPIO29
GND (31) (32) GND
GPIO10 (33) (34) GPIO30
GPIO11 (35) (36) GPIO31
GND (37) (38) GND
GPIO0-27 VREF (39) (40) GPIO0-27 VREF
GPIO28-45 VREF (41) (42) GPIO28-45 VREF
GND (43) (44) GND
GPIO12 (45) (46) GPIO32
GPIO13 (47) (48) GPIO33
GND (49) (50) GND
GPIO14 (51) (52) GPIO34
GPIO15 (53) (54) GPIO35
GND (55) (56) GND
GPIO16 (57) (58) GPIO36
GPIO17 (59) (60) GPIO37
GND (61) (62) GND
GPIO18 (63) (64) GPIO38
GPIO19 (65) (66) GPIO39
GND (67) (68) GND
GPIO20 (69) (70) GPIO40
GPIO21 (71) (72) GPIO41
GND (73) (74) GND
GPIO22 (75) (76) GPIO42
GPIO23 (77) (78) GPIO43
GND (79) (80) GND
GPIO24 (81) (82) GPIO44
GPIO25 (83) (84) GPIO45
GND (85) (86) GND
GPIO26 (87) (88) GPIO46 1V8
GPIO27 (89) (90) GPIO47 1V8
GND (91) (92) GND
DSI0 DN1 (92) (94) DSI1 DP0
DSI0 DP1 (95) (96) DSI1 DN0
GND (97) (98) GND
DSI0 DN0 (95) (100) DSI1 CP
DSI0 DP0 (101) (102) DSI1 CN
GND (103) (104) GND
DSI0 CN (105) (106) DSI1 DP3
DSI0 CP (107) (108) DSI1 DN3
GND (109) (110) GND
HDMI CK N (111) (112) DSI1 DP2
HDMI CK P (113) (114) DSI1 DN2
GND (115) (116) GND
HDMI D0 N (117) (118) DSI1 DP1
HDMI D0 P (119) (120) DSI1 DN1
GND (121) (122) GND
HDMI D1 N (123) (124) NC
HDMI D1 P (125) (126) NC
GND (127) (128) NC
HDMI D2 N (129) (130) NC
HDMI D2 P (131) (132) NC
GND (133) (134) GND
CAM1 DP3 (135) (136) CAM0 DP0
CAM1 DN3 (137) (138) CAM0 DN0
GND (139) (140) GND
CAM1 DP2 (141) (142) CAM0 CP
CAM1 DN2 (143) (144) CAM0 CN
GND (145) (146) GND
CAM1 DP2 (147) (148) CAM0 DP1
CAM1 DN2 (149) (150) CAM0 DN1
GND (151) (152) GND
CAM1 DP1 (153) (154) NC
CAM1 DN1 (155) (156) NC
GND (157) (158) NC
CAM1 DP0 (159) (160) NC
CAM1 DN0 (161) (162) NC
GND (163) (164) GND
USB DP (165) (166) TVDAC
USB DM (167) (168) USB OTGID
GND (169) (170) GND
HDMI CEC (171) (172) VC TRST N
HDMI SDA (173) (174) VC TDI
HDMI SCL (175) (176) VC TMS
RUN (177) (178) VC TDO
VDD CORE (179) (180) VC TCK
GND (181) (182) GND
1V8 (183) (184) 1V8
1V8 (185) (186) 1V8
GND (187) (188) GND
VDAC (189) (190) VDAC
3V3 (191) (192) 3V3
3V3 (193) (194) 3V3
GND (195) (196) GND
VBAT (197) (198) VBAT
VBAT (199) (200) VBAT
For further information, please refer to https://pinout.xyz/
Raspberry Pi CM3 rev 1.0
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi CM3 rev 1.0 | a020a0 | 1GB | | | 4GB eMMC | Raspberry Pi OS Lite (Legacy, 32-bit) - Buster | | |
Pinout
Description : Raspberry Pi CM3 rev 1.0
Revision : a020a0
SoC : BCM2837
RAM : 1GB
Storage : eMMC / off-board
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 2
Display ports (DSI): 2
+---------------------------------------+| O Raspberry Pi CM3 O | ) Version 1.0 +---+ (| |SoC| | ) +---+ (| O _ O ||||||| ||||||||||||||||||||||||||||||||||
SODIMM:
GND (1) (2) EMMC DISABLE N
GPIO0 (3) (4) NC / SDX VREF
GPIO1 (5) (6) NC / SDX VREF
GND (7) (8) GND
GPIO2 (9) (10) NC / SDX CLK
GPIO3 (11) (12) NC / SDX CMD
GND (13) (14) GND
GPIO4 (15) (16) NC / SDX D0
GPIO5 (17) (18) NC / SDX D1
GND (13) (14) GND
GPIO6 (21) (22) NC / SDX D2
GPIO7 (23) (24) NC / SDX D3
GND (25) (26) GND
GPIO8 (27) (28) GPIO28
GPIO9 (29) (30) GPIO29
GND (31) (32) GND
GPIO10 (33) (34) GPIO30
GPIO11 (35) (36) GPIO31
GND (37) (38) GND
GPIO0-27 VREF (39) (40) GPIO0-27 VREF
GPIO28-45 VREF (41) (42) GPIO28-45 VREF
GND (43) (44) GND
GPIO12 (45) (46) GPIO32
GPIO13 (47) (48) GPIO33
GND (49) (50) GND
GPIO14 (51) (52) GPIO34
GPIO15 (53) (54) GPIO35
GND (55) (56) GND
GPIO16 (57) (58) GPIO36
GPIO17 (59) (60) GPIO37
GND (61) (62) GND
GPIO18 (63) (64) GPIO38
GPIO19 (65) (66) GPIO39
GND (67) (68) GND
GPIO20 (69) (70) GPIO40
GPIO21 (71) (72) GPIO41
GND (73) (74) GND
GPIO22 (75) (76) GPIO42
GPIO23 (77) (78) GPIO43
GND (79) (80) GND
GPIO24 (81) (82) GPIO44
GPIO25 (83) (84) GPIO45
GND (85) (86) GND
GPIO26 (87) (88) HDMI HPD N 1V8
GPIO27 (89) (90) EMMC EN N 1V8
GND (91) (92) GND
DSI0 DN1 (92) (94) DSI1 DP0
DSI0 DP1 (95) (96) DSI1 DN0
GND (97) (98) GND
DSI0 DN0 (95) (100) DSI1 CP
DSI0 DP0 (101) (102) DSI1 CN
GND (103) (104) GND
DSI0 CN (105) (106) DSI1 DP3
DSI0 CP (107) (108) DSI1 DN3
GND (109) (110) GND
HDMI CK N (111) (112) DSI1 DP2
HDMI CK P (113) (114) DSI1 DN2
GND (115) (116) GND
HDMI D0 N (117) (118) DSI1 DP1
HDMI D0 P (119) (120) DSI1 DN1
GND (121) (122) GND
HDMI D1 N (123) (124) NC
HDMI D1 P (125) (126) NC
GND (127) (128) NC
HDMI D2 N (129) (130) NC
HDMI D2 P (131) (132) NC
GND (133) (134) GND
CAM1 DP3 (135) (136) CAM0 DP0
CAM1 DN3 (137) (138) CAM0 DN0
GND (139) (140) GND
CAM1 DP2 (141) (142) CAM0 CP
CAM1 DN2 (143) (144) CAM0 CN
GND (145) (146) GND
CAM1 DP2 (147) (148) CAM0 DP1
CAM1 DN2 (149) (150) CAM0 DN1
GND (151) (152) GND
CAM1 DP1 (153) (154) NC
CAM1 DN1 (155) (156) NC
GND (157) (158) NC
CAM1 DP0 (159) (160) NC
CAM1 DN0 (161) (162) NC
GND (163) (164) GND
USB DP (165) (166) TVDAC
USB DM (167) (168) USB OTGID
GND (169) (170) GND
HDMI CEC (171) (172) VC TRST N
HDMI SDA (173) (174) VC TDI
HDMI SCL (175) (176) VC TMS
RUN (177) (178) VC TDO
VDD CORE (179) (180) VC TCK
GND (181) (182) GND
1V8 (183) (184) 1V8
1V8 (185) (186) 1V8
GND (187) (188) GND
VDAC (189) (190) VDAC
3V3 (191) (192) 3V3
3V3 (193) (194) 3V3
GND (195) (196) GND
VBAT (197) (198) VBAT
VBAT (199) (200) VBAT
For further information, please refer to https://pinout.xyz/
Raspberry Pi CM3+ rev 1.0
| Item | Revision | RAM | Case | Power Supply | Storage | OS | Hostname | Notes |
|---|
| Raspberry Pi CM3+ rev 1.0 | a02100 | 1GB | Compute Module I/O Board V3.0 | | 32GB eMMC | Raspberry Pi OS (64-bit) - Bookworm | | With CMIO-DISPLAY V1.1 Adapter and CMIO-CAMERA V1.1 Adapter |
| Raspberry Pi CM3+ rev 1.0 | a02100 | 1GB | | | | | | |
Pinout
Description : Raspberry Pi CM3+ rev 1.0
Revision : a02100
SoC : BCM2837
RAM : 1GB
Storage : eMMC / off-board
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 2
Display ports (DSI): 2
+---------------------------------------+| O Raspberry Pi CM3+ O | ) Version 1.0 ,---. (| |SoC| | ) `---' (| O _ O ||||||| ||||||||||||||||||||||||||||||||||
SODIMM:
GND (1) (2) EMMC DISABLE N
GPIO0 (3) (4) NC / SDX VREF
GPIO1 (5) (6) NC / SDX VREF
GND (7) (8) GND
GPIO2 (9) (10) NC / SDX CLK
GPIO3 (11) (12) NC / SDX CMD
GND (13) (14) GND
GPIO4 (15) (16) NC / SDX D0
GPIO5 (17) (18) NC / SDX D1
GND (13) (14) GND
GPIO6 (21) (22) NC / SDX D2
GPIO7 (23) (24) NC / SDX D3
GND (25) (26) GND
GPIO8 (27) (28) GPIO28
GPIO9 (29) (30) GPIO29
GND (31) (32) GND
GPIO10 (33) (34) GPIO30
GPIO11 (35) (36) GPIO31
GND (37) (38) GND
GPIO0-27 VREF (39) (40) GPIO0-27 VREF
GPIO28-45 VREF (41) (42) GPIO28-45 VREF
GND (43) (44) GND
GPIO12 (45) (46) GPIO32
GPIO13 (47) (48) GPIO33
GND (49) (50) GND
GPIO14 (51) (52) GPIO34
GPIO15 (53) (54) GPIO35
GND (55) (56) GND
GPIO16 (57) (58) GPIO36
GPIO17 (59) (60) GPIO37
GND (61) (62) GND
GPIO18 (63) (64) GPIO38
GPIO19 (65) (66) GPIO39
GND (67) (68) GND
GPIO20 (69) (70) GPIO40
GPIO21 (71) (72) GPIO41
GND (73) (74) GND
GPIO22 (75) (76) GPIO42
GPIO23 (77) (78) GPIO43
GND (79) (80) GND
GPIO24 (81) (82) GPIO44
GPIO25 (83) (84) GPIO45
GND (85) (86) GND
GPIO26 (87) (88) HDMI HPD N 1V8
GPIO27 (89) (90) EMMC EN N 1V8
GND (91) (92) GND
DSI0 DN1 (92) (94) DSI1 DP0
DSI0 DP1 (95) (96) DSI1 DN0
GND (97) (98) GND
DSI0 DN0 (95) (100) DSI1 CP
DSI0 DP0 (101) (102) DSI1 CN
GND (103) (104) GND
DSI0 CN (105) (106) DSI1 DP3
DSI0 CP (107) (108) DSI1 DN3
GND (109) (110) GND
HDMI CK N (111) (112) DSI1 DP2
HDMI CK P (113) (114) DSI1 DN2
GND (115) (116) GND
HDMI D0 N (117) (118) DSI1 DP1
HDMI D0 P (119) (120) DSI1 DN1
GND (121) (122) GND
HDMI D1 N (123) (124) NC
HDMI D1 P (125) (126) NC
GND (127) (128) NC
HDMI D2 N (129) (130) NC
HDMI D2 P (131) (132) NC
GND (133) (134) GND
CAM1 DP3 (135) (136) CAM0 DP0
CAM1 DN3 (137) (138) CAM0 DN0
GND (139) (140) GND
CAM1 DP2 (141) (142) CAM0 CP
CAM1 DN2 (143) (144) CAM0 CN
GND (145) (146) GND
CAM1 DP2 (147) (148) CAM0 DP1
CAM1 DN2 (149) (150) CAM0 DN1
GND (151) (152) GND
CAM1 DP1 (153) (154) NC
CAM1 DN1 (155) (156) NC
GND (157) (158) NC
CAM1 DP0 (159) (160) NC
CAM1 DN0 (161) (162) NC
GND (163) (164) GND
USB DP (165) (166) TVDAC
USB DM (167) (168) USB OTGID
GND (169) (170) GND
HDMI CEC (171) (172) VC TRST N
HDMI SDA (173) (174) VC TDI
HDMI SCL (175) (176) VC TMS
RUN (177) (178) VC TDO
VDD CORE (179) (180) VC TCK
GND (181) (182) GND
1V8 (183) (184) 1V8
1V8 (185) (186) 1V8
GND (187) (188) GND
VDAC (189) (190) VDAC
3V3 (191) (192) 3V3
3V3 (193) (194) 3V3
GND (195) (196) GND
VBAT (197) (198) VBAT
VBAT (199) (200) VBAT
For further information, please refer to https://pinout.xyz/
Raspberry Pi CM4 rev 1.0
Benchmarks
Pinout
Description : Raspberry Pi CM4 rev 1.0
Revision : b03140
SoC : BCM2711
RAM : 2GB
Storage : eMMC / off-board
USB ports : 2 (of which 0 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 2
Display ports (DSI): 2
,--csi1---dsi0---dsi1-----------,-------------.-----------.| ---- ---- ---- J2 ooooooo| |oo1 |c| Pi CM4 Rev 1.0 1oooooo| Wi |J3 |s| IO Board | Fi | |i| J6 2o | +--+| |P| || J8 1o | ,----. |eM|| }-{ || oooooooooooooooooooo | |SoC | |MC|| |C| || 1ooooooooooooooooooo J9 | | | +--+| |I| || ,---. 12 | `----' | |e| ||( =O | oo | +----+ | || ) + | | |RAM | | ||( =O | `--+----+-----' || `---' || oo1 J1 || || |Net | |USB| |uSD| |p||| |HDMI| |HDMI| | | | 2 | usb | | |w||`----| 0 |---| 1 |-------| |-| |-| |------------|r|'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J1:
GLOBAL ENABLE (1)
GND (2)
RUN (3)
J2:
1-2 DISABLE eMMC BOOT (1) (2) 1-2 DISABLE eMMC BOOT
3-4 WRITE-PROT EEPROM (3) (4) 3-4 WRITE-PROT EEPROM
AIN0 MXL7704 (5) (6) AIN1 MXL7704
GND (7) (8) SYNC_IN
SYNC OUT (9) (10) GND
TV OUT (11) (12) GND
13-14 WAKE (13) (14) 13-14 WAKE
J3:
WL DISABLE (1)
GND (2)
BT DISABLE (3)
J6:
1-2 CAM0+DISP0 (1) (2) 1-2 CAM0+DISP0
3-4 CAM0+DISP0 (3) (4) 3-4 CAM0+DISP0
J9:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi CM4 rev 1.1
Benchmarks
Pinout
Description : Raspberry Pi CM4 rev 1.1
Revision : d03141
SoC : BCM2711
RAM : 8GB
Storage : eMMC / off-board
USB ports : 2 (of which 0 USB3)
Ethernet ports : 1 (1000Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 2
Display ports (DSI): 2
,--csi1---dsi0---dsi1-----------,-------------.-----------.| ---- ---- ---- J2 ooooooo| |oo1 |c| Pi CM4 Rev 1.1 1oooooo| Wi |J3 |s| IO Board | Fi | |i| J6 2o | +--+| |P| || J8 1o | ,----. |eM|| }-{ || oooooooooooooooooooo | |SoC | |MC|| |C| || 1ooooooooooooooooooo J9 | | | +--+| |I| || ,---. 12 | `----' | |e| ||( =O | oo | +----+ | || ) + | | |RAM | | ||( =O | `--+----+-----' || `---' || oo1 J1 || || |Net | |USB| |uSD| |p||| |HDMI| |HDMI| | | | 2 | usb | | |w||`----| 0 |---| 1 |-------| |-| |-| |------------|r|'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
J1:
GLOBAL ENABLE (1)
GND (2)
RUN (3)
J2:
1-2 DISABLE eMMC BOOT (1) (2) 1-2 DISABLE eMMC BOOT
3-4 WRITE-PROT EEPROM (3) (4) 3-4 WRITE-PROT EEPROM
AIN0 MXL7704 (5) (6) AIN1 MXL7704
GND (7) (8) SYNC_IN
SYNC OUT (9) (10) GND
TV OUT (11) (12) GND
13-14 WAKE (13) (14) 13-14 WAKE
J3:
WL DISABLE (1)
GND (2)
BT DISABLE (3)
J6:
1-2 CAM0+DISP0 (1) (2) 1-2 CAM0+DISP0
3-4 CAM0+DISP0 (3) (4) 3-4 CAM0+DISP0
J9:
TR01 TAP (1) (2) TR00 TAP
TR03 TAP (3) (4) TR02 TAP
For further information, please refer to https://pinout.xyz/
Raspberry Pi Pico
Original
Branded
╭───────────────────────────────────────── Raspberry Pi Pico Pinout ─────────────────────────────────────────╮│ ┏━━━━━┓ ││ ┏━━━━┫ ┣━━━━┓ ││ PWM0 A UART0 TX I2C0 SDA SPI0 RX GP0 ┃◎ ┗━━━━━┛ ◎┃ VBUS ││ PWM0 B UART0 RX I2C0 SCL SPI0 CSn GP1 ┃◎ ▩ ◎┃ VSYS ││ Ground ┃▣ └─GP25 ▣┃ Ground ││ PWM1 A UART0 CTS I2C1 SDA SPI0 SCK GP2 ┃◎ ◎┃ 3v3 En ││ PWM1 B UART0 RTS I2C1 SCL SPI0 TX GP3 ┃◎ ◎┃ 3v3 Out ││ PWM2 A UART1 TX I2C0 SDA SPI0 RX GP4 ┃◎ ◎┃ ADC VRef ││ PWM2 B UART1 RX I2C0 SCL SPI0 CSn GP5 ┃◎ ◎┃ GP28 / A2 SPI1 RX I2C0 SDA UART0 TX PWM6 A ││ Ground ┃▣ ▣┃ ADC Ground ││ PWM3 A UART1 CTS I2C1 SDA SPI0 SCK GP6 ┃◎ ◎┃ GP27 / A1 SPI1 TX I2C1 SCL UART1 RTS PWM5 B ││ PWM3 B UART1 RTS I2C1 SCL SPI0 TX GP7 ┃◎ ◎┃ GP26 / A0 SPI1 SCK I2C1 SDA UART1 CTS PWM5 A ││ PWM4 A UART1 TX I2C0 SDA SPI1 RX GP8 ┃◎ ◎┃ run ││ PWM4 B UART1 RX I2C0 SCL SPI1 CSn GP9 ┃◎ ◎┃ GP22 SPI0 SCK I2C1 SDA UART1 CTS PWM3 A ││ Ground ┃▣ ▣┃ Ground ││ PWM5 A UART1 CTS I2C1 SDA SPI1 SCK GP10 ┃◎ ◎┃ GP21 SPI0 CSn I2C0 SCL UART1 RX PWM2 B ││ PWM5 B UART1 RTS I2C1 SCL SPI1 TX GP11 ┃◎ ◎┃ GP20 SPI0 RX I2C0 SDA UART1 TX PWM2 A ││ PWM6 A UART0 TX I2C0 SDA SPI1 RX GP12 ┃◎ ◎┃ GP19 SPI0 TX I2C1 SCL UART0 RTS PWM1 B ││ PWM6 B UART0 RX I2C0 SCL SPI1 CSn GP13 ┃◎ ◎┃ GP18 SPI0 SCK I2C1 SDA UART0 CTS PWM1 A ││ Ground ┃▣ ▣┃ Ground ││ PWM7 A UART0 CTS I2C1 SDA SPI1 SCK GP14 ┃◎ DEBUG ◎┃ GP17 SPI0 CSn I2C0 SCL UART0 RX PWM0 B ││ PWM7 B UART0 RTS I2C1 SCL SPI1 TX GP15 ┃◎ ◎ ▣ ◎ ◎┃ GP16 SPI0 RX I2C0 SDA UART0 TX PWM0 A ││ ┗━━━━━━━━━━━━━━━┛ ││ @gadgetoid SWCLK ┘ │ └ SWDIO ││ https://pico.pinout.xyz GND │╰────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
Raspberry Pi Zero
Raspberry Pi Zero rev 1.2
| Item | Revision | RAM | Case | Storage | OS | hostname | Notes |
|---|
| Raspberry Pi Zero rev 1.2 | 900092 | 512MB | | | | | |
Pinout
Description : Raspberry Pi Zero rev 1.2
Revision : 900092
SoC : BCM2835
RAM : 512MB
Storage : MicroSD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 0
Display ports (DSI): 0
,--oooooooooooooooooooo---.| 1ooooooooooooooooooo J8|---+ PiZero RUN o1 | sd| V1.2 +---+ TV 1o |---+ |SoC| || hdmi +---+ usb pwr |`-| |------------| |-| |-'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
RUN:
RUN (1)
GND (2)
TV:
COMPOSITE (1)
GND (2)
For further information, please refer to https://pinout.xyz/
Raspberry Pi Zero rev 1.3
Pinout
Description : Raspberry Pi Zero rev 1.3
Revision : 900093
SoC : BCM2835
RAM : 512MB
Storage : MicroSD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : False
Bluetooth : False
Camera ports (CSI) : 1
Display ports (DSI): 0
,--oooooooooooooooooooo---.| 1ooooooooooooooooooo J8|---+ PiZero RUN o1 c| sd| V1.3 +---+ TV 1o s|---+ |SoC| i|| hdmi +---+ usb pwr |`-| |------------| |-| |-'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
RUN:
RUN (1)
GND (2)
TV:
COMPOSITE (1)
GND (2)
For further information, please refer to https://pinout.xyz/
Raspberry Pi Zero W rev 1.1
| Item | Revision | RAM | Case | Storage | OS | hostname | Notes |
|---|
| Raspberry Pi Zero W rev 1.1 | 9000c1 | 512MB | Official Raspberry Pi Zero Case (Camera Lid) | | | camera1 | With Generic Raspberry Pi Camera Rev 1.3 |
| Raspberry Pi Zero W rev 1.1 | 9000c1 | 512MB | Official Raspberry Pi Zero Case (Camera Lid) | | | camera2 | With Generic Raspberry Pi Camera Rev 1.3 |
| Raspberry Pi Zero W rev 1.1 | 9000c1 | 512MB | Official Raspberry Pi Zero Case (Camera Lid) | | | | |
| Raspberry Pi Zero W rev 1.1 | 9000c1 | 512MB | Official Raspberry Pi Zero Case (Camera Lid) | | | | |
| Raspberry Pi Zero WH rev 1.1 | 9000c1 | 512MB | Pi Zero Case for Waveshare 2.13" eInk Display | | | | With Waveshare 2.13" eInk Display |
| Raspberry Pi Zero WH rev 1.1 | 9000c1 | 512MB | PaPiRus Zero Case | 16GB MicroSD (Kingston) | Jayofelony Pwnagotchi | pete | With PaPiRus Zero eInk Screen pHAT |
| Raspberry Pi Zero WH rev 1.1 | 9000c1 | 512MB | TV HAT Case for Pi Zero (v2.0) | | | | With Raspberry Pi TV HAT |
| Raspberry Pi Zero WH rev 1.1 | 9000c1 | 512MB | AZ-Touch Pi Zero | | Weather Station | | |
Pinout
Description : Raspberry Pi Zero W rev 1.1
Revision : 9000c1
SoC : BCM2835
RAM : 512MB
Storage : MicroSD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 0
,--oooooooooooooooooooo---.| 1ooooooooooooooooooo J8|---+ PiZero W RUN o1 c| sd| V1.1 +---+ TV 1o s|---+ |SoC| i|| hdmi +---+ usb pwr |`-| |------------| |-| |-'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
RUN:
RUN (1)
GND (2)
TV:
COMPOSITE (1)
GND (2)
For further information, please refer to https://pinout.xyz/
Raspberry Pi Zero2W rev 1.0
Pinout
Description : Raspberry Pi Zero2W rev 1.0
Revision : 902120
SoC : BCM2837
RAM : 512MB
Storage : MicroSD
USB ports : 1 (of which 0 USB3)
Ethernet ports : 0 (0Mbps max. speed)
Wi-fi : True
Bluetooth : True
Camera ports (CSI) : 1
Display ports (DSI): 0
,--oooooooooooooooooooo---.| 1ooooooooooooooooooo J8|---+ +---+ PiZero2W c| sd| |SoC| Wi V1.0 s|---+ +---+ Fi i|| hdmi usb pwr |`-| |------------| |-| |-'
J8:
3V3 (1) (2) 5V
GPIO2 (3) (4) 5V
GPIO3 (5) (6) GND
GPIO4 (7) (8) GPIO14
GND (9) (10) GPIO15
GPIO17 (11) (12) GPIO18
GPIO27 (13) (14) GND
GPIO22 (15) (16) GPIO23
3V3 (17) (18) GPIO24
GPIO10 (19) (20) GND
GPIO9 (21) (22) GPIO25
GPIO11 (23) (24) GPIO8
GND (25) (26) GPIO7
GPIO0 (27) (28) GPIO1
GPIO5 (29) (30) GND
GPIO6 (31) (32) GPIO12
GPIO13 (33) (34) GND
GPIO19 (35) (36) GPIO16
GPIO26 (37) (38) GPIO20
GND (39) (40) GPIO21
For further information, please refer to https://pinout.xyz/
STMicroelectronics
Teensy
| Item | Case | Flashed with | Notes |
|---|
| Teensy 4.0 | Retro Telephone | Audio Guestbook | With Audio Board for Teensy 4 |
