Configuring the software to run a 3D Printer
Table of contents
- MainsailOS
- Update APT Repositories
- Klipper MOTD
- Kiauh
- LDO Installer
- CandleLight Firmware
- Katapult (formerly known as CanBoot)
- Flash Klipper to MCU
- RPi microcontroller
- Create Flash MCU Convenience Script
- Resonance Compensation
- Setup Crowsnest
- Fix for RepRapDiscount 128x64 Full Graphic Smart Controller
- KlipperScreen Fix
MainsailOS
As Mainsail is my Klipper UI of choice I use MainsailOS 2.1.0 for my printers as many of the tools come installed by default.
Update APT Repositories
One of the first things I do when setting up a new machine is to update apt to use the Nexus repository to avoid downloading updates multiple times over the internet.
sudo nano /etc/apt/auth.conf.d/nexus.mikethomas.info.conf
sudo nano /etc/apt/sources.list
sudo nano /etc/apt/sources.list.d/raspi.list

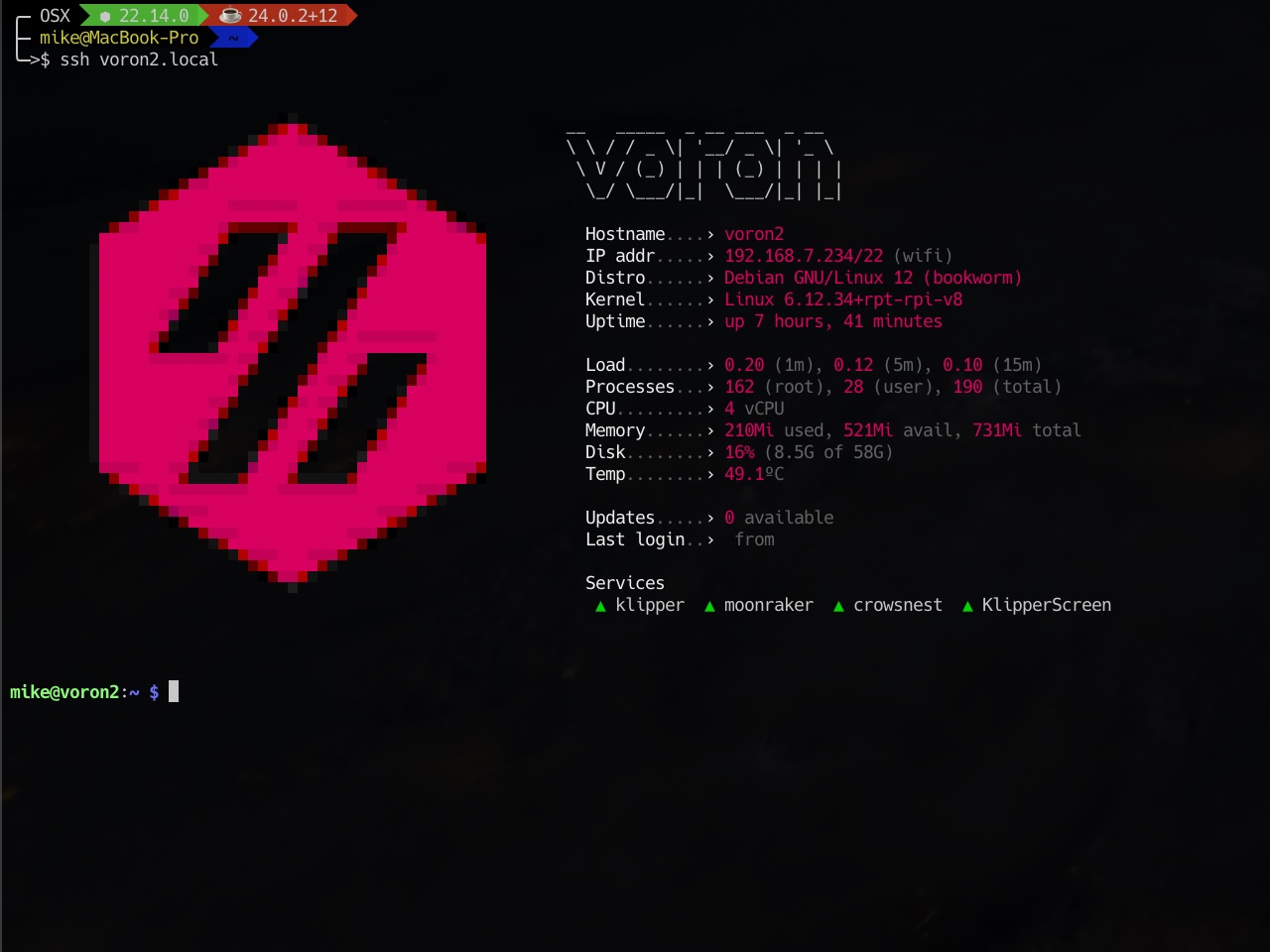

Klipper MOTD
This adds a nice splash screen to the console that is really useful when logging into the printer via SSH.
git clone https://www.github.com/tomaski/klipper-motd.git
chmod +x ./klipper-motd/setup.sh
sudo ./klipper-motd/setup.sh --install
- Enter
Yto add update check to dashboard
sudo motd-config
- Select
OS Flavor(Option 1) - Select theme you would like to use
Kiauh
Kiauh stands for "Klipper Installation And Update Helper" it is a set of scripts making it easier to set up the tools required for Klipper.
git clone https://github.com/dw-0/kiauh.git
./kiauh/kiauh.sh
Install KlipperScreen
- Select
Install(Option 1) - Select
KlipperScreen(Option 5) - Press Enter to install as service (Default)
- Press Enter to use Xserver (Default)
- Press Enter to install NetworkManager (Default)
Install PrettyGCode
- Select
Install(Option 1) - Select
PrettyGCode(Option 7) - Press Enter to use port 7136 (Default)
LDO Installer
The LDO Installer sets up the printer configurations specifically for LDO Motors printer kits. It also has a nice option to create a splash screen for KlipperScreen whilst the printer is booting up.
git clone https://github.com/MotorDynamicsLab/LDOInstaller.git
./LDOInstaller/LDOInstaller.sh
- Select LDO Kit you have
- Select printer size you have
- Select
Splash Screen(Option 7) - Select
Install(Option 1)
CandleLight Firmware
CandleLight Firmware is used for many boards connect the USB port of Raspberry Pi to CAN bus for 3D printing boards such as the BigTreeTech U2C.
git clone https://github.com/candle-usb/candleLight_fw
cd ~/candleLight_fw/
sudo apt install gcc-arm-none-eabi
mkdir build
cd build
cmake .. -DCMAKE_TOOLCHAIN_FILE=../cmake/gcc-arm-none-eabi-8-2019-q3-update.cmake
make candleLight_fw -j4
sudo dfu-util -a 0 -D ./candleLight_fw.bin --dfuse-address 0x08000000:force:mass-erase:leave -d 0483:df11
Create /etc/network/interfaces.d/can0:
allow-hotplug can0
iface can0 can static
bitrate 1000000
up ifconfig $IFACE txqueuelen 128
sudo reboot
~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0
ip -s link show can0
Katapult (formerly known as CanBoot)
Katapult is a bootloader mainly for MCUs that use CAN bus, however it now also supports USB and UART interfaces.
We will check out the code now ready for use when we flash Klipper to the MCUs in the next section as not all boards will use it.
git clone https://github.com/Arksine/katapult
Flash Klipper to MCU
Flashing the Klipper firmware to the MCU can be slightly different depending on the type of Micro-controller architecture that the MCU uses.
The basic firmware flashing steps are as follows:
cd ~/klipper/
make clean
make menuconfig
make
However, as I have many different controllers I have opted to use the KCONFIG_CONFIG method of configuring allowing me to save the multiple configs so they can be easily reused when I need to update the firmware.
You can find the configs used in the sections below in my Klipper Config Firmware Repository.
Anet A8
This is the board that originally came with my first 3D printer.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.anet_a8
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Atmega AVR) ---> Processor model (atmega1284p) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config, Build and Flash to the board:
cp config.anet_a8 ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.anet_a8 -j4
avrdude -p atmega1284p -c arduino -b 57600 -P /dev/serial/by-id/usb-1a86_USB2.0-Serial-if00-port0 -U out/klipper.elf.hex
Arduino Mega
Used by RAMPS Shield.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.arduino_mega
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Atmega AVR) ---> Processor model (atmega2560) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config, Build and Flash to the board:
cp config.arduino_mega ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.arduino_mega -j4
make KCONFIG_CONFIG=config.arduino_mega flash FLASH_DEVICE=/dev/serial/by-id/usb-1a86_USB_Serial-if00-port0
Arduino Uno
Used by Arduino CNC Shield.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.arduino_uno
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Atmega AVR) ---> Processor model (atmega328p) ---> Optional features (to reduce code size) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuAs the firmware is too large to fit in the supplied flash, we also need to disable some features:
(Top) → Optional features (to reduce code size)Klipper Firmware Configuration[*] Support micro-controller based ADC (analog to digital) [ ] Support communicating with external chips via SPI bus[ ] Support communicating with external chips via I2C bus[*] Support hardware PWM (pulse width modulation)[*] Support GPIO based button reading[ ] Support Trinamic stepper motor driver UART communication[ ] Support 'neopixel' type LED control[ ] Support measuring fan tachometer GPIO pins *** LCD chips ***[*] Support ST7920 LCD display[*] Support HD44780 LCD display *** External ADC type chips ***[ ] Support HX711 and HX717 ADC chips [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config, Build and Flash to the board:
cp config.arduino_uno ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.arduino_uno -j4
make KCONFIG_CONFIG=config.arduino_uno flash FLASH_DEVICE=/dev/serial/by-id/usb-1a86_USB2.0-Serial-if00-port0
Easy BRD
Get the most up to date info on the official page.
This board will be used for the 6 channel Enraged Rabbit Carrot Feeder V1.1.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.easy_brd
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (SAMC21/SAMD21/SAMD51/SAME5x) ---> Processor model (SAMD21G18) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (Internal clock) ---> Communication interface (USB) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config, Build and Flash to the board:
cp config.easy_brd ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.easy_brd -j4
sudo apt install bossa-cli
sudo bossac -i -d -p /dev/ttyACM0 -e -w -v -R --offset=0x2000 out/klipper.bin
EBB SB2240 CAN V1.0
Get the most up to date info on the official page.
This board will be used for the Stealthburner on the Voron 2.4 when I upgrade to CAN.
Katapult Configuration
CAN Bus
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.sb2240_can_katapult
cp config.sb2240_can_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.sb2240_can_katapult -j4
sudo dfu-util -a 0 -d 0483:df11 -s 0x08000000:mass-erase:force -D ~/katapult/out/katapult.bin
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Build Katapult deployment application (Do not build) ---> Clock Reference (8 MHz crystal) ---> Communication interface (CAN bus (on PB0/PB1)) ---> Application start offset (8KiB offset) --->(1000000) CAN bus speed() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[*] Enable Status LED(PA13) Status LED GPIO Pin [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuUSB
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.sb2240_katapult
cp config.sb2240_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.sb2240_katapult -j4
sudo dfu-util -a 0 -d 0483:df11 -s 0x08000000:mass-erase:force -D ~/katapult/out/katapult.bin
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Build Katapult deployment application (Do not build) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> Application start offset (8KiB offset) ---> USB ids --->() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[*] Enable Status LED(PA13) Status LED GPIO Pin [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuKlipper Firmware Configuration
CAN Bus
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.sb2240_can_klipper
cp config.sb2240_can_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.sb2240_can_klipper -j4
make KCONFIG_CONFIG=config.sb2240_can_klipper flash FLASH_DEVICE=1209:beba
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (CAN bus (on PB0/PB1)) --->(1000000) CAN bus speed[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuUSB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.sb2240_klipper
cp config.sb2240_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.sb2240_klipper -j4
make KCONFIG_CONFIG=config.sb2240_klipper flash FLASH_DEVICE=/dev/serial/by-id/usb-Klipper_stm32g0b1xx_2C0048000950425539393020-if00
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuEBB36 V1.0
Get the most up to date info on the official page.
Katapult Configuration
USB
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.ebb36_1.0_katapult
cp config.ebb36_1.0_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.ebb36_1.0_katapult -j4
sudo dfu-util -a 0 -D ~/katapult/out/katapult.bin --dfuse-address 0x08000000:force:mass-erase:leave -d 0483:df11
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32F072) ---> Build Katapult deployment application (Do not build) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> Application start offset (8KiB offset) ---> USB ids --->() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[*] Enable Status LED(PA14) Status LED GPIO Pin [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuKlipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.ebb36_1.0_klipper
cp config.ebb36_1.0_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.ebb36_1.0_klipper -j4
make KCONFIG_CONFIG=config.ebb36_1.0_klipper flash FLASH_DEVICE=/dev/serial/by-id/usb-katapult_stm32f072xb_1F003A000857435231343620-if00
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32F072) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuEBB42 V1.1
Get the most up to date info on the official page.
Katapult Configuration
USB
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.ebb42_1.1_katapult
cp config.ebb42_1.1_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.ebb42_1.1_katapult -j4
sudo dfu-util -a 0 -D ~/katapult/out/katapult.bin --dfuse-address 0x08000000:force:mass-erase:leave -d 0483:df11
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Build Katapult deployment application (Do not build) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> Application start offset (8KiB offset) ---> USB ids --->() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[*] Enable Status LED(PA13) Status LED GPIO Pin [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuKlipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.ebb42_1.1_klipper
cp config.ebb42_1.1_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.ebb42_1.1_klipper -j4
make KCONFIG_CONFIG=config.ebb42_1.1_klipper flash FLASH_DEVICE=/dev/serial/by-id/usb-katapult_stm32g0b1xx_42004D001650415833323520-if00
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuKlipper Expander
Get the most up to date info on the official page.
This board is used to control fans on the Voron 1.8.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.klipper_expander
Set the following configuration:
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32F042) ---> Bootloader offset (No bootloader) ---> Clock Reference (Internal clock) ---> Communication interface (USB (on PA9/PA10)) ---> USB ids ---> Optional features (to reduce code size) --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuAs the firmware is too large to fit in the supplied flash, we also need to disable some features:
(Top) → Optional features (to reduce code size)Klipper Firmware Configuration[*] Support micro-controller based ADC (analog to digital) [*] Support communicating with external chips via SPI bus[*] Support software based SPI "bit-banging"[*] Support communicating with external chips via I2C bus[*] Support software based I2C "bit-banging"[*] Support GPIO based button reading[ ] Support Trinamic stepper motor driver UART communication[*] Support 'neopixel' type LED control[*] Support measuring fan tachometer GPIO pins *** LCD chips ***[*] Support ST7920 LCD display[*] Support HD44780 LCD display *** Accelerometer chips ***[*] Support adxl accelerometers[*] Support lis2dw and lis3dh 3-axis accelerometers[*] Support MPU accelerometers[*] Support ICM20948 accelerometer *** External ADC type chips ***[*] Support thermocouple MAX sensors[*] Support HX711 and HX717 ADC chips[*] Support ADS 1220 ADC chip *** Other external sensor chips ***[ ] Support ldc1612 eddy current sensor[ ] Support angle sensors [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuInstall the boot jumper and reset the board to put the board into DFU mode.
Backup config, Build and Flash to the board:
cp config.klipper_expander ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.klipper_expander -j4
make KCONFIG_CONFIG=config.klipper_expander flash FLASH_DEVICE=0483:df11
MMB CAN V1.0
Get the most up to date info on the official page.
This board will be used for the 8 channel Enraged Rabbit Carrot Feeder V2.0.
Katapult Configuration
CAN Bus
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.mmb_can_1.0_can_katapult
cp config.mmb_can_1.0_can_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.mmb_can_1.0_can_katapult -j4
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Build Katapult deployment application (Do not build) ---> Clock Reference (8 MHz crystal) ---> Communication interface (CAN bus (on PB0/PB1)) ---> Application start offset (8KiB offset) --->(1000000) CAN bus speed() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[ ] Enable Status LED [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuUSB
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.mmb_can_1.0_katapult
cp config.mmb_can_1.0_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.mmb_can_1.0_katapult -j4
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Build Katapult deployment application (Do not build) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> Application start offset (8KiB offset) ---> USB ids --->() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[ ] Enable Status LED [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuKlipper Firmware Configuration
CAN Bus
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.mmb_can_1.0_can_klipper
cp config.mmb_can_1.0_can_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.mmb_can_1.0_can_klipper -j4
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (CAN bus (on PB0/PB1)) --->(1000000) CAN bus speed[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuUSB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.mmb_can_1.0_klipper
cp config.mmb_can_1.0_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.mmb_can_1.0_klipper -j4
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32G0B1) ---> Bootloader offset (8KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuPicobilical
Get the most up to date info on the official page.
This board will be used for the Voron 0.2.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.picobilical
cp config.picobilical ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.picobilical -j4
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Bootloader offset (No bootloader) ---> Communication Interface (USBSERIAL) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuPITB V1.0
Get the most up to date info on the official page.
This board will be used for the A/B Motors on the Voron 2.4 when I upgrade to CAN.
Katapult Configuration
CAN Bus
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.pitb_can_katapult
cp config.pitb_can_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.pitb_can_katapult -j4
(Top)Katapult Configuration Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Flash chip (W25Q080 with CLKDIV 2) ---> Build Katapult deployment application (Do not build) ---> Communication Interface (CAN bus) --->(14) CAN RX gpio number(13) CAN TX gpio number(1000000) CAN bus speed() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[*] Enable Status LED(gpio15) Status LED GPIO Pin [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuKlipper Firmware Configuration
CAN Bus
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.pitb_can_klipper
cp config.pitb_can_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.pitb_can_klipper -j4
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Bootloader offset (16KiB bootloader) ---> Communication Interface (CAN bus) --->(14) CAN RX gpio number(13) CAN TX gpio number(1000000) CAN bus speed[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuUSB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.pitb_klipper
cp config.pitb_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.pitb_klipper -j4
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Bootloader offset (No bootloader) ---> Flash chip (W25Q080 with CLKDIV 2) ---> Communication Interface (USBSERIAL) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuFlash
Hold the Boot boot button whilst connecting the MCU to the Raspberry Pi and run:
sudo mount /dev/sda1 /mnt
sudo cp out/klipper.uf2 /mnt
sudo umount /mnt
SKR 1.4
Get the most up to date info on the official page.
There is also some useful information in the Voron Design Documentation.
This board is currently using Marlin Firmware on my Anet A8, but will be flashed with klipper when upgrading to the AM8.
Klipper Firmware Configuration
Serial
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_1.4_serial
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (LPC176x) ---> Processor model (lpc1768 (100 MHz)) ---> Bootloader offset (16KiB bootloader) ---> Communication interface (Serial (on UART0 P0.3/P0.2)) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_1.4_serial ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_1.4_serial -j4
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_1.4_usb
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (LPC176x) ---> Processor model (lpc1768 (100 MHz)) ---> Bootloader offset (16KiB bootloader) ---> Communication interface (USB) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_1.4_usb ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_1.4_usb -j4
Flash
For the initial flash we need to copy the file to a micro sd card. The easiest way to do this is to copy out/klipper.bin to the klipper config directory:
cp out/klipper.bin ../printer_data/config/
You can then:
- Download it to your local machine from the Mainsail web interface.
- Copy the
klipper.binfile to the root of the Micro SD card. - Rename
klipper.bintofirmware.bin. - Eject the Micro SD card from the PC.
- Disconnect the power to the MCU.
- Insert the Micro SD card into the slot on the MCU.
- Power on the MCU.
- Check the firmware has flashed, file on the SD card will change to
firmware.cur, if succesful.
Important
If the file is not named firmware.bin, the firmware will not be updated.
Subsequent flashes can then be done by using the following commands:
sudo service klipper stop
~/klipper/scripts/flash-sdcard.sh /dev/serial/by-id/usb-Klipper_lpc1769_1C10011425813AAFCED76B5CC22000F5-if00 btt-skr-v1.3
sudo service klipper start
SKR 1.4 Turbo
Get the most up to date info on the official page.
There is also some useful information in the Voron Design Documentation.
This board is being used by the Voron 1.8.
Klipper Firmware Configuration
Serial
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_1.4_turbo_serial
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (LPC176x) ---> Processor model (lpc1769 (120 MHz)) ---> Bootloader offset (16KiB bootloader) ---> Communication interface (Serial (on UART0 P0.3/P0.2)) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_1.4_turbo_serial ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_1.4_turbo_serial -j4
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_1.4_turbo_usb
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (LPC176x) ---> Processor model (lpc1769 (120 MHz)) ---> Bootloader offset (16KiB bootloader) ---> Communication interface (USB) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_1.4_turbo_usb ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_1.4_turbo_usb -j4
Flash
For the initial flash we need to copy the file to a micro sd card. The easiest way to do this is to copy out/klipper.bin to the klipper config directory:
cp out/klipper.bin ../printer_data/config/
You can then:
- Download it to your local machine from the Mainsail web interface.
- Copy the
klipper.binfile to the root of the Micro SD card. - Rename
klipper.bintofirmware.bin. - Eject the Micro SD card from the PC.
- Disconnect the power to the MCU.
- Insert the Micro SD card into the slot on the MCU.
- Power on the MCU.
- Check the firmware has flashed, file on the SD card will change to
firmware.cur, if succesful.
Important
If the file is not named firmware.bin, the firmware will not be updated.
Subsequent flashes can then be done by using the following commands:
sudo service klipper stop
~/klipper/scripts/flash-sdcard.sh /dev/serial/by-id/usb-Klipper_lpc1769_1C10011425813AAFCED76B5CC22000F5-if00 btt-skr-v1.3
sudo service klipper start
SKR Mini E3 V2.0
Get the most up to date info on the official page.
There is also some useful information in the Voron Design Documentation.
This board will be used in the Rook 2020.
Klipper Firmware Configuration
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_mini_e3
Set the following configuration:
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32F103) ---> [ ] Only 10KiB of RAM (for rare stm32f103x6 variant)[ ] Disable SWD at startup (for GigaDevice stm32f103 clones) Bootloader offset (28KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'(!PA14) GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_mini_e3 ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_mini_e3 -j4
For the initial flash we need to copy the file to a micro sd card. The easiest way to do this is to copy out/klipper.bin to the klipper config directory:
cp out/klipper.bin ../printer_data/config/
You can then:
- Download it to your local machine from the Mainsail web interface.
- Copy the
klipper.binfile to the root of the Micro SD card. - Rename
klipper.bintofirmware.bin. - Eject the Micro SD card from the PC.
- Disconnect the power to the MCU.
- Insert the Micro SD card into the slot on the MCU.
- Power on the MCU.
- Check the firmware has flashed, file on the SD card will change to
firmware.cur, if succesful.
Important
If the file is not named firmware.bin, the firmware will not be updated.
Subsequent flashes can then be done by using the following commands:
sudo service klipper stop
~/klipper/scripts/flash-sdcard.sh /dev/serial/by-id/usb-Klipper_stm32f103xe_1C10011425813AAFCED76B5CC22000F5-if00 btt-skr-mini-e3-v2
sudo service klipper start
SKR Pico
Get the most up to date info on the official page.
There is also some useful information in the Voron Design Documentation.
This board will be used for the Voron 0.2.
Klipper Firmware Configuration
CAN
You will need a CAN Transceiver Module for this, I used this SN65HVD230 Module connected to the Raspberry Pi Serial Port.
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_pico_can
Set the following configuration:
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Bootloader offset (No bootloader) ---> Flash chip (W25Q080 with CLKDIV 2) ---> Communication Interface (USB to CAN bus bridge) --->(1) CAN RX gpio number(0) CAN TX gpio number USB ids --->(500000) CAN bus speed[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_pico_can ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_pico_can -j4
Serial
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_pico_serial
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Bootloader offset (No bootloader) ---> Communication Interface (UART0 on GPIO0/GPIO1) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_pico_serial ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_pico_serial -j4
USB
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.skr_pico_usb
Set the following configuration:
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Raspberry Pi RP2040/RP235x) ---> Processor model (rp2040) ---> Bootloader offset (No bootloader) ---> Communication Interface (USBSERIAL) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.skr_pico_usb ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.skr_pico_usb -j4
Flash
For the initial flash we need to install jumpers on the USB Power and Boot pins, connect the MCU to the Raspberry Pi and run:
sudo mount /dev/sda1 /mnt
sudo cp out/klipper.uf2 /mnt
sudo umount /mnt
Disconnect power from the MCU and remove the jumpers we installed earlier.
Subsequent flashes can then be done by using the following commands:
sudo service klipper stop
cd ~/klipper
make flash FLASH_DEVICE=/dev/serial/by-id/usb-Klipper_rp2040_1D0004001050563046363120-if00
sudo service klipper start
Super8
Get the most up to date info on the official page.
This board will be used for the Voron 2.4.
Katapult Configuration
USB
cd ~/katapult/
make clean
make menuconfig KCONFIG_CONFIG=config.super8_katapult
Set the following configuration:
(Top)Katapult Configuration Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32F407) ---> Build Katapult deployment application (32KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> Application start offset (32KiB offset) ---> USB ids --->() GPIO pins to set on bootloader entry[*] Support bootloader entry on rapid double click of reset button[ ] Enable bootloader entry on button (or gpio) state[ ] Enable Status LED [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config and Build:
cp config.super8_katapult ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.super8_katapult -j4
For the initial flash we need to copy the file to a micro sd card. The easiest way to do this is to copy out/deployer.bin to the klipper config directory:
cp out/deployer.bin ../printer_data/config/
You can then:
- Download it to your local machine from the Mainsail web interface.
- Copy the
deployer.binfile to the root of the Micro SD card. - Rename
deployer.bintofirmware.bin. - Eject the Micro SD card from the PC.
- Insert the Micro SD card into the slot on the MCU.
- Press the
RESETbutton on the MCU.
Subsequent flashes can then be done by double pressing the RESET button on the MCU and then using the command:
python3 ~/katapult/scripts/flashtool.py -f ~/katapult/out/deployer.bin -d /dev/serial/by-id/usb-katapult_stm32f407xx_5A0034000250304235323120-if00
Klipper Firmware Configuration
USB
cd ../klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.super8_klipper
Set the following configuration:
(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options Micro-controller Architecture (STMicroelectronics STM32) ---> Processor model (STM32F407) ---> Bootloader offset (32KiB bootloader) ---> Clock Reference (8 MHz crystal) ---> Communication interface (USB (on PA11/PA12)) ---> USB ids --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuBackup config, Build and Flash to the board:
cp config.super8_klipper ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.super8_klipper -j4
make KCONFIG_CONFIG=config.super8_klipper flash FLASH_DEVICE=/dev/serial/by-id/usb-katapult_stm32f407xx_5A0034000250304235323120-if00
RPi microcontroller
To get the most up-to-date info for the latest Klipper version visit the Klipper RPi micro-controller setup guide.
Install the RC Script
Copy and enable the klipper-mcu.service for systemd:
cd ~/klipper/
sudo cp ./scripts/klipper-mcu.service /etc/systemd/system/
sudo systemctl enable klipper-mcu.service
Building the Micro-Controller Code
Configure the Klipper micro-controller code:
cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.rpi
cp config.rpi ../printer_data/config/Firmware/
Set Micro-controller Architecture to Linux process...
(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options Micro-controller Architecture (Linux process) ---> [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menuthen save and exit and run:
sudo service klipper stop
make flash KCONFIG_CONFIG=config.rpi
sudo service klipper start
If klippy.log reports a Permission denied error when attempting to connect to /tmp/klipper_host_mcu then you need to add your user to the tty group. The following command will add the pi user to the tty group:
sudo usermod -a -G tty pi
Optional: Interface Options
You can find the Interface Options in the Raspberry Pi Software Configuration Tool by running:
sudo raspi-config
┌─────────┤ Raspberry Pi Software Configuration Tool (raspi-config) ├──────────┐ │ │ │ 1 System Options Configure system settings │ │ 2 Display Options Configure display settings │ │ 3 Interface Options Configure connections to peripherals │ │ 4 Performance Options Configure performance settings │ │ 5 Localisation Options Configure language and regional settings │ │ 6 Advanced Options Configure advanced settings │ │ 8 Update Update this tool to the latest version │ │ 9 About raspi-config Information about this configuration tool │ │ │ │ │ │ │ │ │ │ │ │ <Select> <Finish> │ │ │ └──────────────────────────────────────────────────────────────────────────────┘ Enabling SPI
SPI should be enabled automatically by the hat EEPROM, If you have trouble, you can enable it manually by selecting SPI under the Interface Options menu.
┌─────────┤ Raspberry Pi Software Configuration Tool (raspi-config) ├──────────┐ │ │ │ I1 SSH Enable/disable remote command line access using SSH │ │ I2 RPi Connect Enable/disable Raspberry Pi Connect │ │ I3 VNC Enable/disable graphical remote desktop access │ │ I4 SPI Enable/disable automatic loading of SPI kernel module │ │ I5 I2C Enable/disable automatic loading of I2C kernel module │ │ I6 Serial Port Enable/disable shell messages on the serial connection │ │ I7 1-Wire Enable/disable one-wire interface │ │ I8 Remote GPIO Enable/disable remote access to GPIO pins │ │ │ │ │ │ │ │ │ │ │ │ <Select> <Back> │ │ │ └──────────────────────────────────────────────────────────────────────────────┘ Enabling I2C
I2C should be enabled automatically by the hat EEPROM, If you have trouble, you can enable it manually by selecting I2C under the Interface Options menu.
┌─────────┤ Raspberry Pi Software Configuration Tool (raspi-config) ├──────────┐ │ │ │ I1 SSH Enable/disable remote command line access using SSH │ │ I2 RPi Connect Enable/disable Raspberry Pi Connect │ │ I3 VNC Enable/disable graphical remote desktop access │ │ I4 SPI Enable/disable automatic loading of SPI kernel module │ │ I5 I2C Enable/disable automatic loading of I2C kernel module │ │ I6 Serial Port Enable/disable shell messages on the serial connection │ │ I7 1-Wire Enable/disable one-wire interface │ │ I8 Remote GPIO Enable/disable remote access to GPIO pins │ │ │ │ │ │ │ │ │ │ │ │ <Select> <Back> │ │ │ └──────────────────────────────────────────────────────────────────────────────┘ If planning to use I2C for the MPU accelerometer, it is also required to set the baud rate to 400000 by: adding/uncommenting dtparam=i2c_arm=on,i2c_arm_baudrate=400000 in /boot/config.txt (or /boot/firmware/config.txt in some distros). This should also be automatically be enabled by the hat EEPROM however you can do it manually if you have any problems.
Enabling 1-wire
If you require, you can enable the 1-wire interface by selecting 1-Wire under the Interface Options menu.
┌─────────┤ Raspberry Pi Software Configuration Tool (raspi-config) ├──────────┐ │ │ │ I1 SSH Enable/disable remote command line access using SSH │ │ I2 RPi Connect Enable/disable Raspberry Pi Connect │ │ I3 VNC Enable/disable graphical remote desktop access │ │ I4 SPI Enable/disable automatic loading of SPI kernel module │ │ I5 I2C Enable/disable automatic loading of I2C kernel module │ │ I6 Serial Port Enable/disable shell messages on the serial connection │ │ I7 1-Wire Enable/disable one-wire interface │ │ I8 Remote GPIO Enable/disable remote access to GPIO pins │ │ │ │ │ │ │ │ │ │ │ │ <Select> <Back> │ │ │ └──────────────────────────────────────────────────────────────────────────────┘ you can then find any conneted sensors serial numbers with: ls /sys/bus/w1/devices/
Optional: Identify the correct gpiochip
To install the Linux GPIO character device:
sudo apt install gpiod
To check available gpiochip run:
gpiodetect
To check the pin number and the pin availability run:
gpioinfo
Optional: Hardware PWM
Raspberry Pi's have two PWM channels (PWM0 and PWM1) which are exposed on the header or if not, can be routed to existing gpio pins. The Linux mcu daemon uses the pwmchip sysfs interface to control hardware pwm devices on Linux hosts. The pwm sysfs interface is not exposed by default on a Raspberry and can be activated by adding a line to /boot/config.txt:
# Enable pwmchip sysfs interface
dtoverlay=pwm,pin=12,func=4
This example enables only PWM0 and routes it to gpio12. If both PWM channels need to be enabled you can use pwm-2chan:
# Enable pwmchip sysfs interface
dtoverlay=pwm-2chan,pin=12,pin2=13,func=4,func2=4
The overlay does not expose the pwm line on sysfs on boot and needs to be exported by echo'ing the number of the pwm channel to /sys/class/pwm/pwmchip0/export:
# Enable pwmchip sysfs interface
echo 0 > /sys/class/pwm/pwmchip0/export
If you have enabled pwm-2chan you can enable PWM1 too with:
# Enable pwmchip sysfs interface
echo 0 > /sys/class/pwm/pwmchip0/export
echo 1 > /sys/class/pwm/pwmchip0/export
This will create device /sys/class/pwm/pwmchip0/pwm0 and optionally /sys/class/pwm/pwmchip0/pwm1 in the filesystem. The easiest way to do this is by adding them to /etc/rc.local before the exit 0 line.
With the sysfs in place, you can now use either the pwm channel(s) by adding the following piece of configuration to your board's config file:
[fan_generic fan1]
pin=rpi:pwmchip0/pwm0
pwm=True
hardware_pwm=True
cycle_time=0.000001
This will add hardware pwm control to gpio12 on the Pi (because the overlay was configured to route pwm0 to pin=12).
PWM0 can be routed to gpio12 and gpio18, PWM1 can be routed to gpio13 and gpio19:
| PWM | gpio PIN | Func |
|---|---|---|
| 0 | 12 | 4 |
| 0 | 18 | 2 |
| 1 | 13 | 4 |
| 1 | 19 | 2 |
Create Flash MCU Convenience Script
nano flash-mcu.sh
chmod +x flash-mcu.sh
./flash-mcu.sh
Example:
cd ~/klipper/
make clean
read -p "Press Enter to configure RPI MCU" </dev/tty
make menuconfig KCONFIG_CONFIG=config.rpi
cp config.rpi ../printer_data/config/Firmware/
echo "Flashing RPI MCU"
sudo service klipper stop
make flash KCONFIG_CONFIG=config.rpi
sudo service klipper start
Resonance Compensation
Get the most up to date info on the official page
sudo apt update
sudo apt install python3-numpy python3-matplotlib libatlas-base-dev libopenblas-dev
~/klippy-env/bin/pip install -v "numpy<1.26"
Then check no errors from the command:
~/klippy-env/bin/python -c 'import numpy;'
Setup Crowsnest
Get the most up to date info on the official page.
Fix for RepRapDiscount 128x64 Full Graphic Smart Controller
My Full Graphic Smart Controller Display is showing the same issue as described in the GitHub issue RepRap Display doesn't work properly
cd ~/klipper/src/
mv lcd_st7920.c lcd_st7920.c.bak
wget https://github.com/Stout69/For-Klipper/raw/main/lcd_st7920.c
cd ../klippy/extras/display/
mv st7920.py st7920.py.bak
wget https://github.com/Stout69/For-Klipper/raw/main/st7920.py
Then recompile klipper for the MCU (See above)
Warning
I have retried these steps recently, however the problem in the GitHub issue still persists.
Since Klipper no longer uses GitHub issues for it's issue tracker, I have created a post in config-support Channel on Discord.
KlipperScreen Fix
When installing KlipperScreen via kiauh you may get Cannot open virtual Console error in the log:
xf86OpenConsole: Cannot open virtual console 2 (Permission denied)
To fix this run the following:
cat /etc/X11/Xwrapper.config
This should have the line allowed_users=anybody in it.
Next run:
cat /etc/group | grep tty
If your username is not listed under that line, you need to add it with the following command:
usermod -a -G tty $USER
Add needs_root_rights=yes to /etc/X11/Xwrapper.config:
sudo bash -c "echo needs_root_rights=yes>>/etc/X11/Xwrapper.config"
sudo service KlipperScreen restart
systemctl status KlipperScreen
