Custom PCBs for Voron Printers

Table of contents

1. Afterburner Toolhead PCB (rev3.2)
   1. Sourcing Parts
2. Afterburner Toolhead PCB (ERCF)
   1. Sourcing Parts
   2. Printing Parts
   3. Assembly
3. Carabiner
   1. Sourcing Parts
4. ERCF Easy BRD
   1. Sourcing Parts
   2. Printing Parts
   3. Assembly
   4. Flashing
5. Klipper Expander
   1. Printing Parts
   2. Assembly
   3. Flashing
6. Klipper Fan Hat
   1. Sourcing Parts
   2. Assembly
7. Microswitch Endstop
   1. Sourcing Parts
8. Microswitch Z Endstop
   1. Sourcing Parts
9. Nano Display
   1. Sourcing Parts
   2. Printing Parts
   3. Flashing
10. PT100 Stick
    1. Assembly
11. SKR Mini E3 V1.2/2.0 Screen Adaptor
    1. Sourcing Parts
12. V0 Umbilical
    1. Sourcing Parts

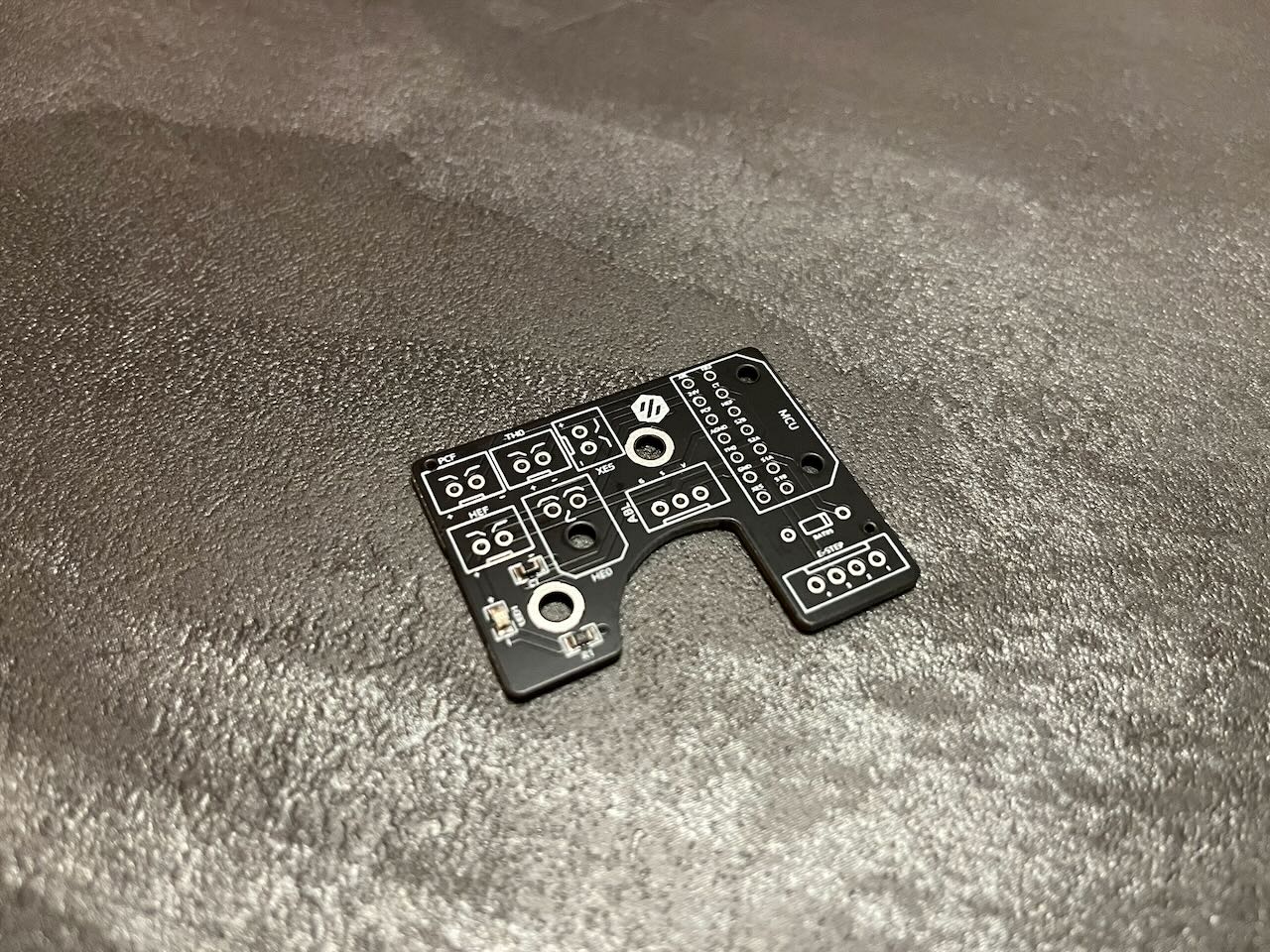

Afterburner Toolhead PCB (rev3.2)

Sourcing Parts

I purchased the PCB only, I sourced the rest of the parts for the kit myself.

Kit contains the Quantity needed for building 1 unit.

PCB

Connectors

Diodes

SMD Components

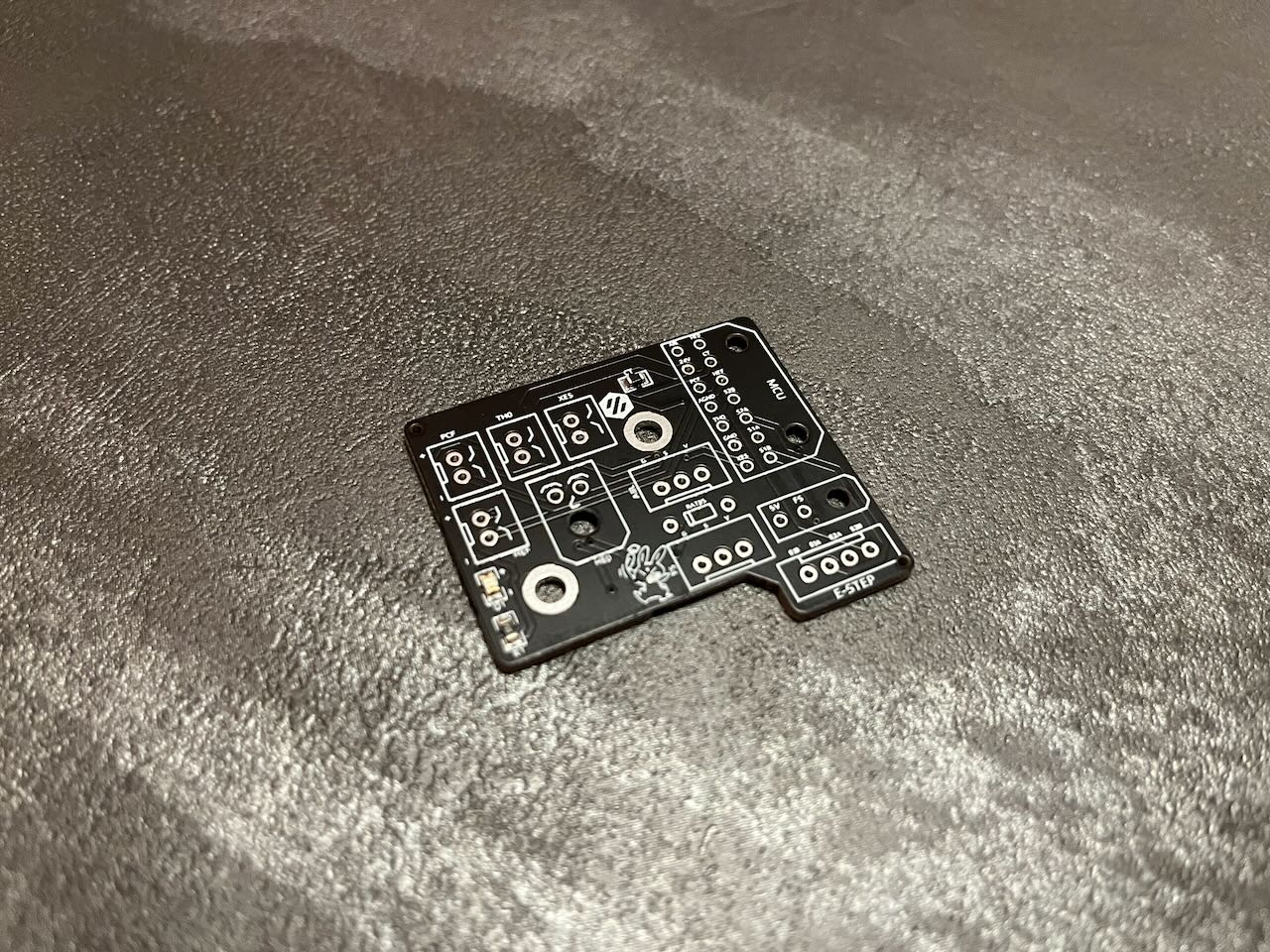

Afterburner Toolhead PCB (ERCF)

Sourcing Parts

I purchased the PCB only, I sourced the rest of the parts for the kit myself.

Kit contains the Quantity needed for building 1 unit.

PCB

Connectors

Diodes

SMD Components

Printing Parts

Assembly

Parts Needed

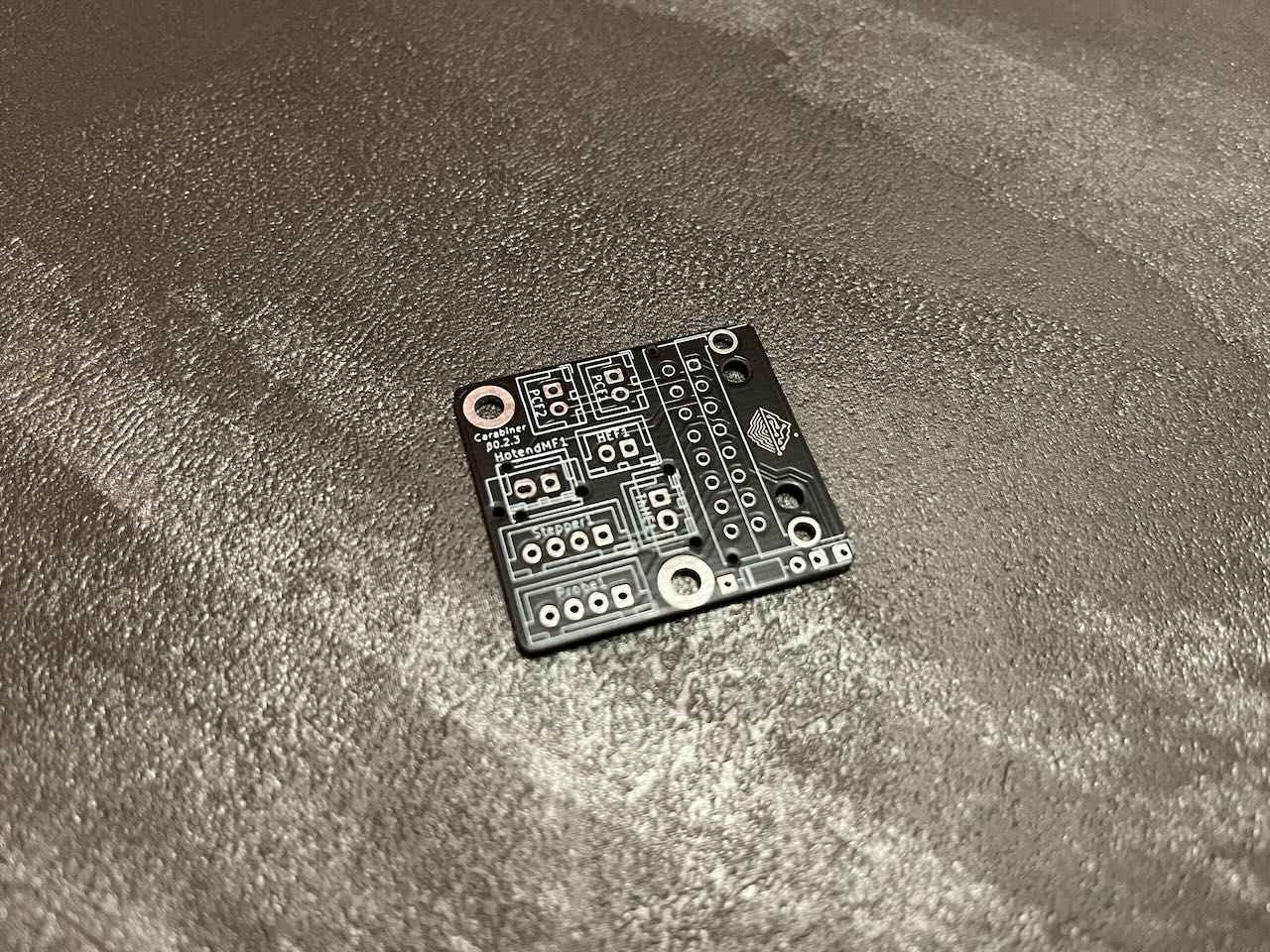

Carabiner

Sourcing Parts

PCB

Connectors

Diodes

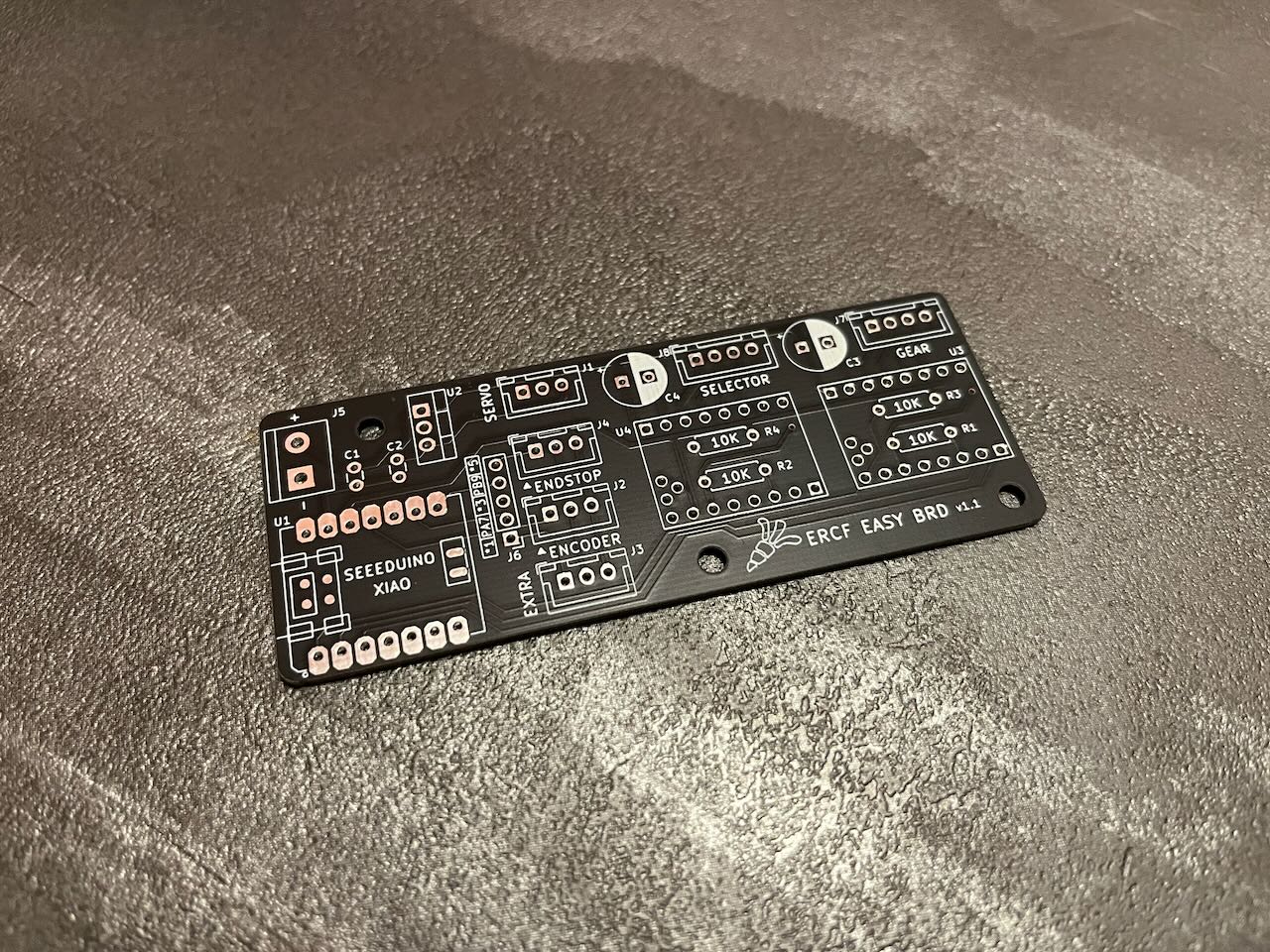

ERCF Easy BRD

Sourcing Parts

I purchased the PCB only, I sourced the rest of the parts for the kit myself.

Kit contains the Quantity needed for building 1 unit.

PCB

Capacitors

Connectors

Integrated Circuits

Misc

Resistors

Printing Parts

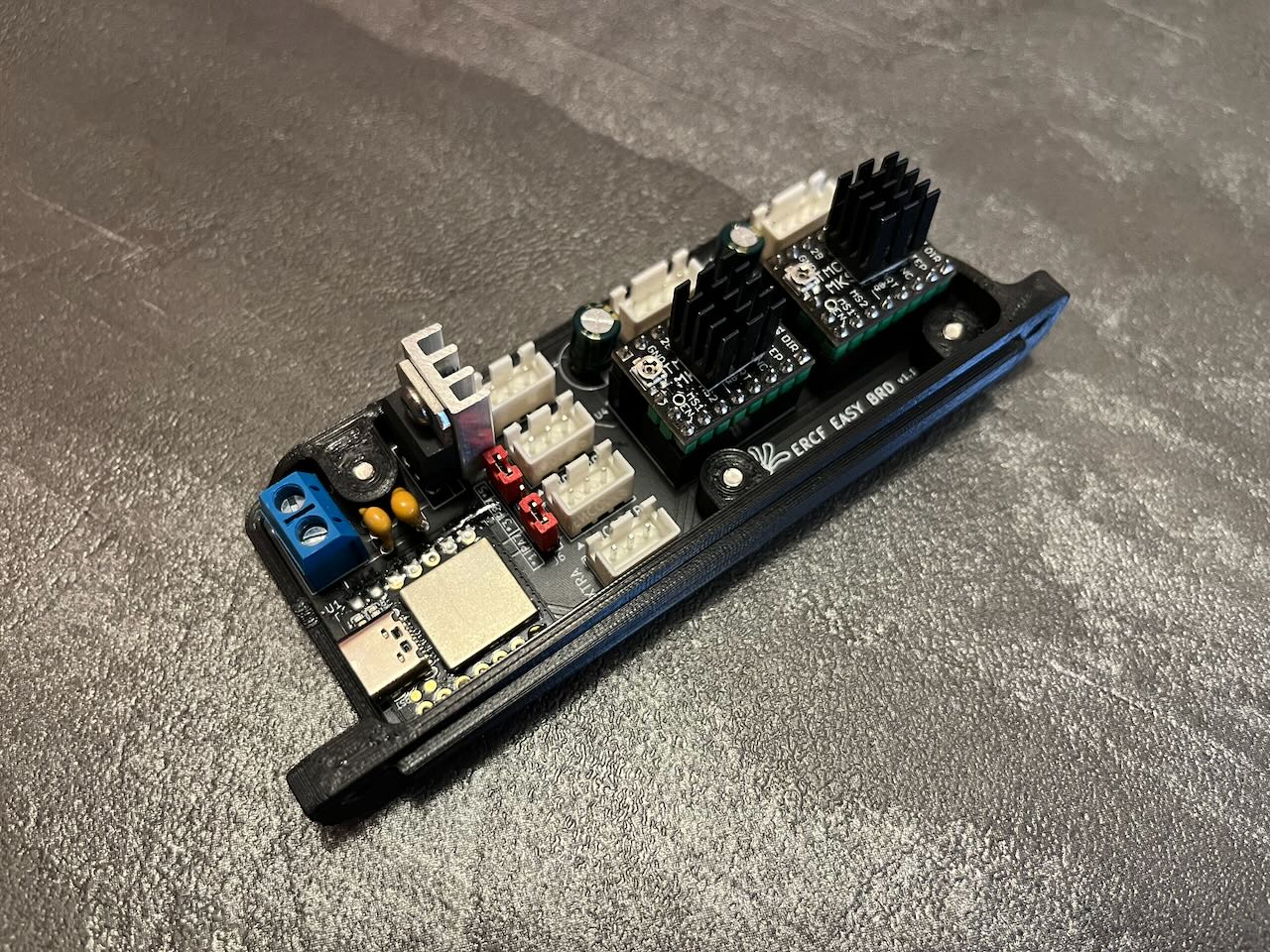

Assembly

Flashing

Get the most up to date info on the official page.

Klipper Firmware Configuration

USB

cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.easy_brd

Set the following configuration:

(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options    Micro-controller Architecture (SAMC21/SAMD21/SAMD51/SAME5x)  --->    Processor model (SAMD21G18)  --->     Bootloader offset (8KiB bootloader)  --->    Clock Reference (Internal clock)  --->    Communication interface (USB)  --->  [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menu

Backup config, Build and Flash to the board:

cp config.easy_brd ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.easy_brd -j4
sudo apt install bossa-cli
sudo bossac -i -d -p /dev/ttyACM0 -e -w -v -R --offset=0x2000 out/klipper.bin

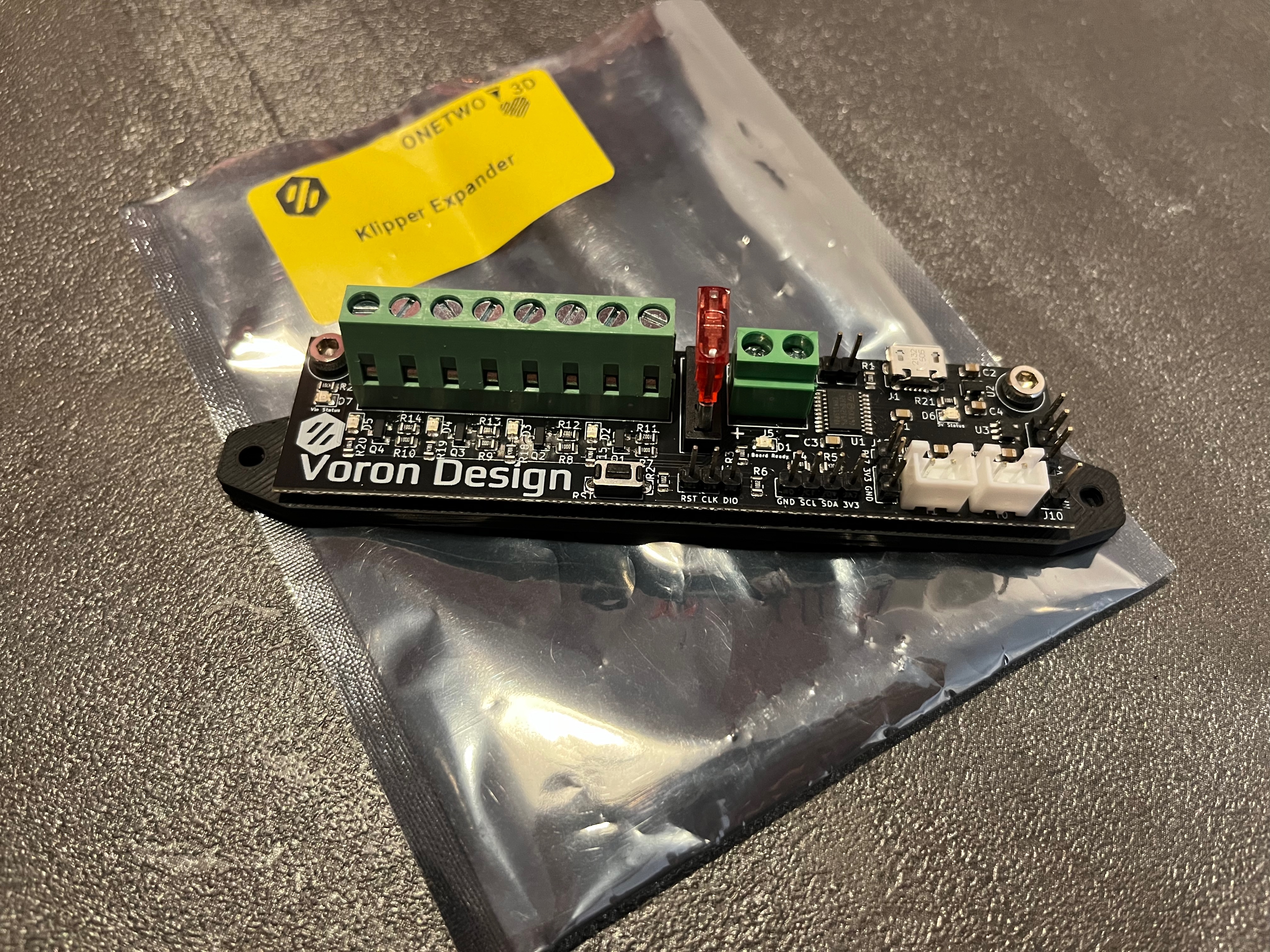

Klipper Expander

PCB to expand the ports that can be used for fans and neopixels. I already have RGB neopixel strips and will need an additional neopixel header as the Stealthburner LEDs I have purchased are incompatible with the strips as they are RGBW.

Printing Parts

There are three different mounts, one vertical, one horizontal and one for DIN rail.

I have printed the horizontal mount as I am planning on mounting the Klipper Expander on the bottom of the rear electronics compartment of the Voron 1.8.

Assembly

I purchased this already assembled.

Parts Used

Flashing

Get the most up to date info on the official page.

Klipper Firmware Configuration

USB

cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.klipper_expander

Set the following configuration:

(Top)Klipper Firmware Configuration[*] Enable extra low-level configuration options    Micro-controller Architecture (STMicroelectronics STM32)  --->    Processor model (STM32F042)  --->     Bootloader offset (No bootloader)  --->    Clock Reference (Internal clock)  --->    Communication interface (USB (on PA9/PA10))  --->    USB ids  --->    Optional features (to reduce code size)  --->[*] Optimize stepper code for 'step on both edges'() GPIO pins to set at micro-controller startup  [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menu

As the firmware is too large to fit in the supplied flash, we also need to disable some features:

(Top) → Optional features (to reduce code size)Klipper Firmware Configuration[*] Support micro-controller based ADC (analog to digital) [*] Support communicating with external chips via SPI bus[*]     Support software based SPI "bit-banging"[*] Support communicating with external chips via I2C bus[*]     Support software based I2C "bit-banging"[*] Support GPIO based button reading[ ] Support Trinamic stepper motor driver UART communication[*] Support 'neopixel' type LED control[*] Support measuring fan tachometer GPIO pins    *** LCD chips ***[*] Support ST7920 LCD display[*] Support HD44780 LCD display    *** Accelerometer chips ***[*] Support adxl accelerometers[*] Support lis2dw and lis3dh 3-axis accelerometers[*] Support MPU accelerometers[*] Support ICM20948 accelerometer    *** External ADC type chips ***[*] Support thermocouple MAX sensors[*] Support HX711 and HX717 ADC chips[*] Support ADS 1220 ADC chip    *** Other external sensor chips ***[ ] Support ldc1612 eddy current sensor[ ] Support angle sensors  [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menu

Install the boot jumper and reset the board to put the board into DFU mode.

Backup config, Build and Flash to the board:

cp config.klipper_expander ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.klipper_expander -j4
make KCONFIG_CONFIG=config.klipper_expander flash FLASH_DEVICE=0483:df11

Klipper Fan Hat

Sourcing Parts

The reference numbers in the notes field refer to the parts required marked on the silkscreen and can be seen in the interactive BOM.

PCB

Fasteners

Connectors

SMD Components

Misc

Assembly

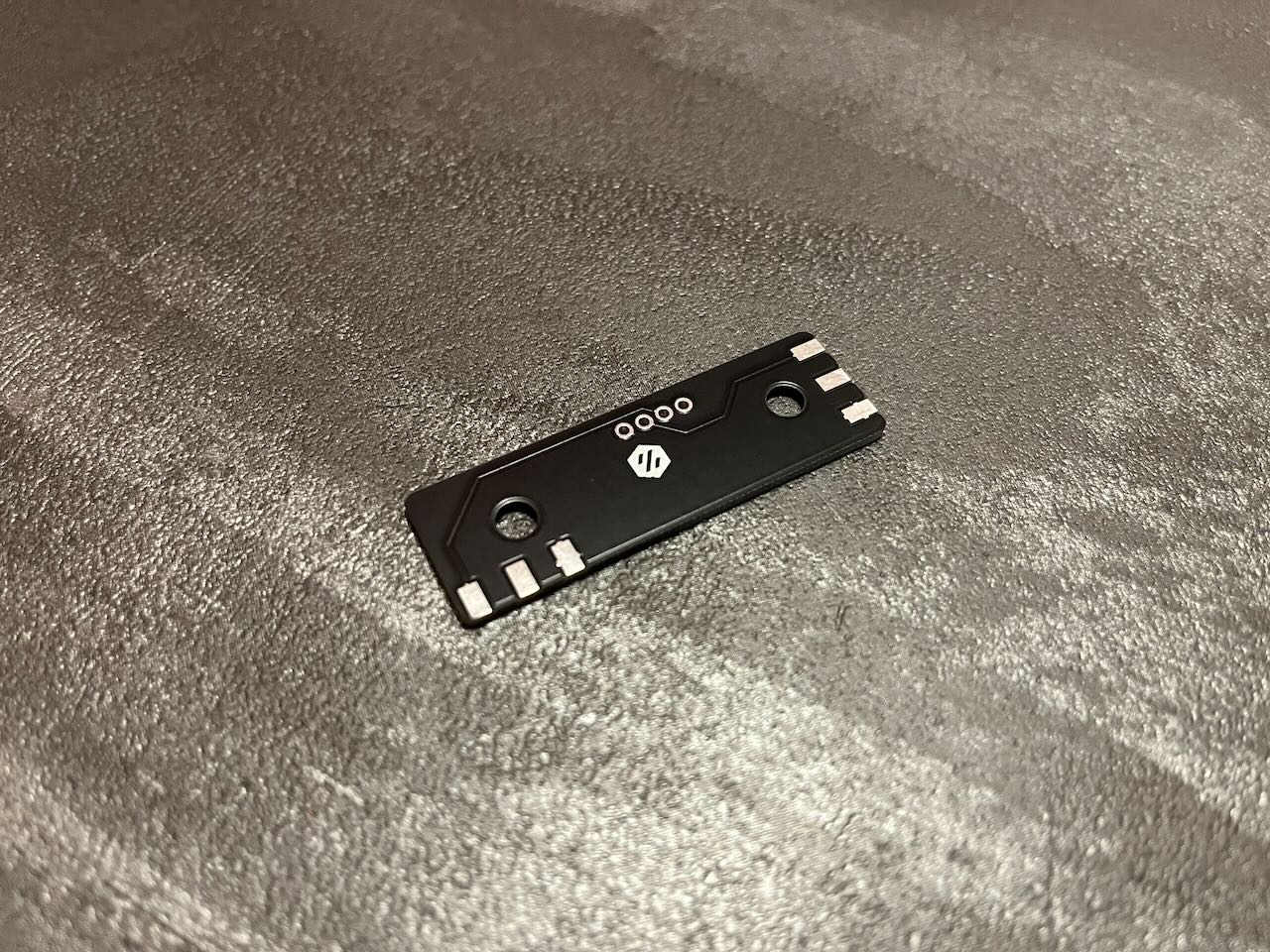

Microswitch Endstop

Sourcing Parts

PCB

Connectors

Misc

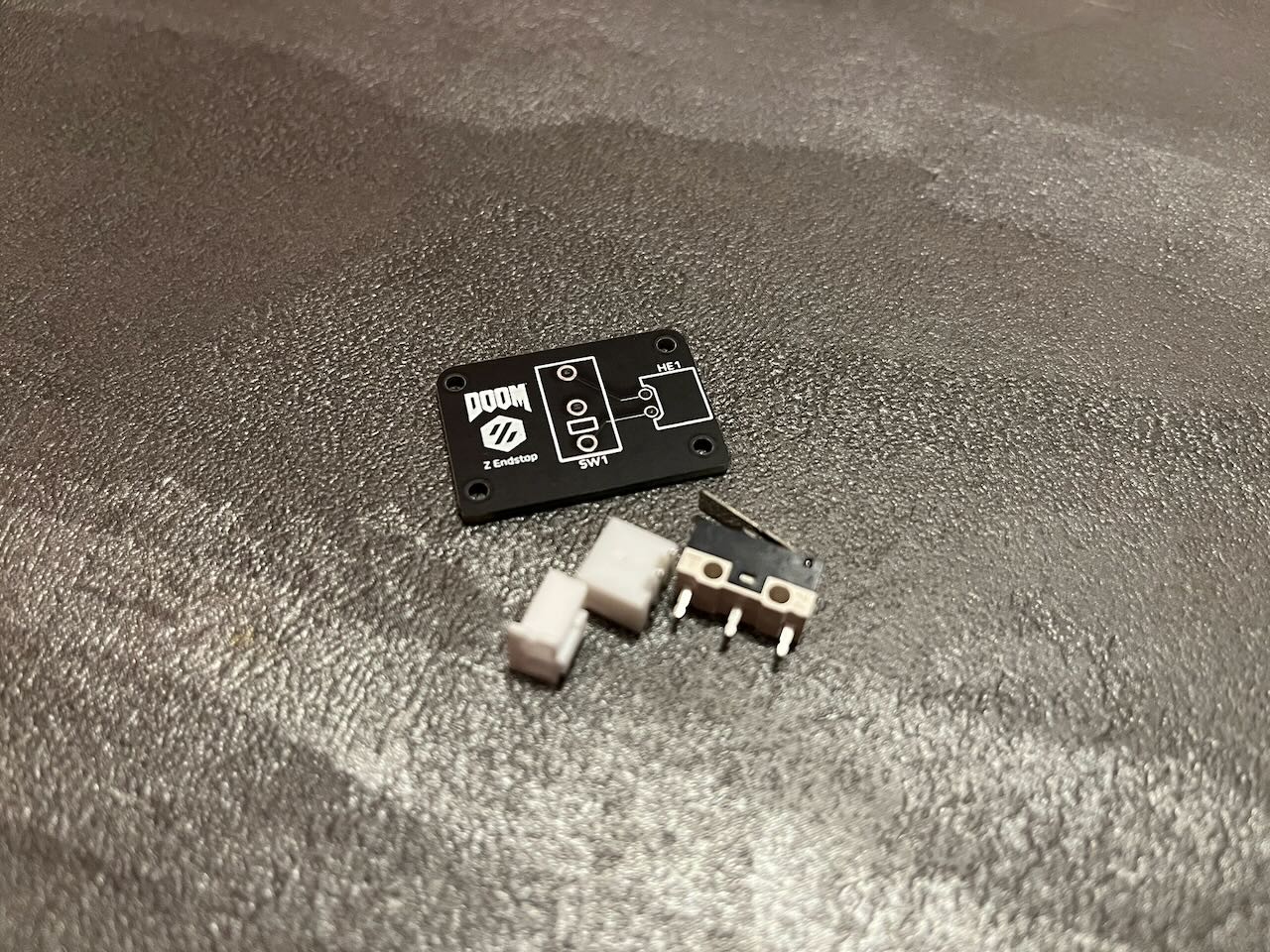

Microswitch Z Endstop

Sourcing Parts

PCB

Connectors

Misc

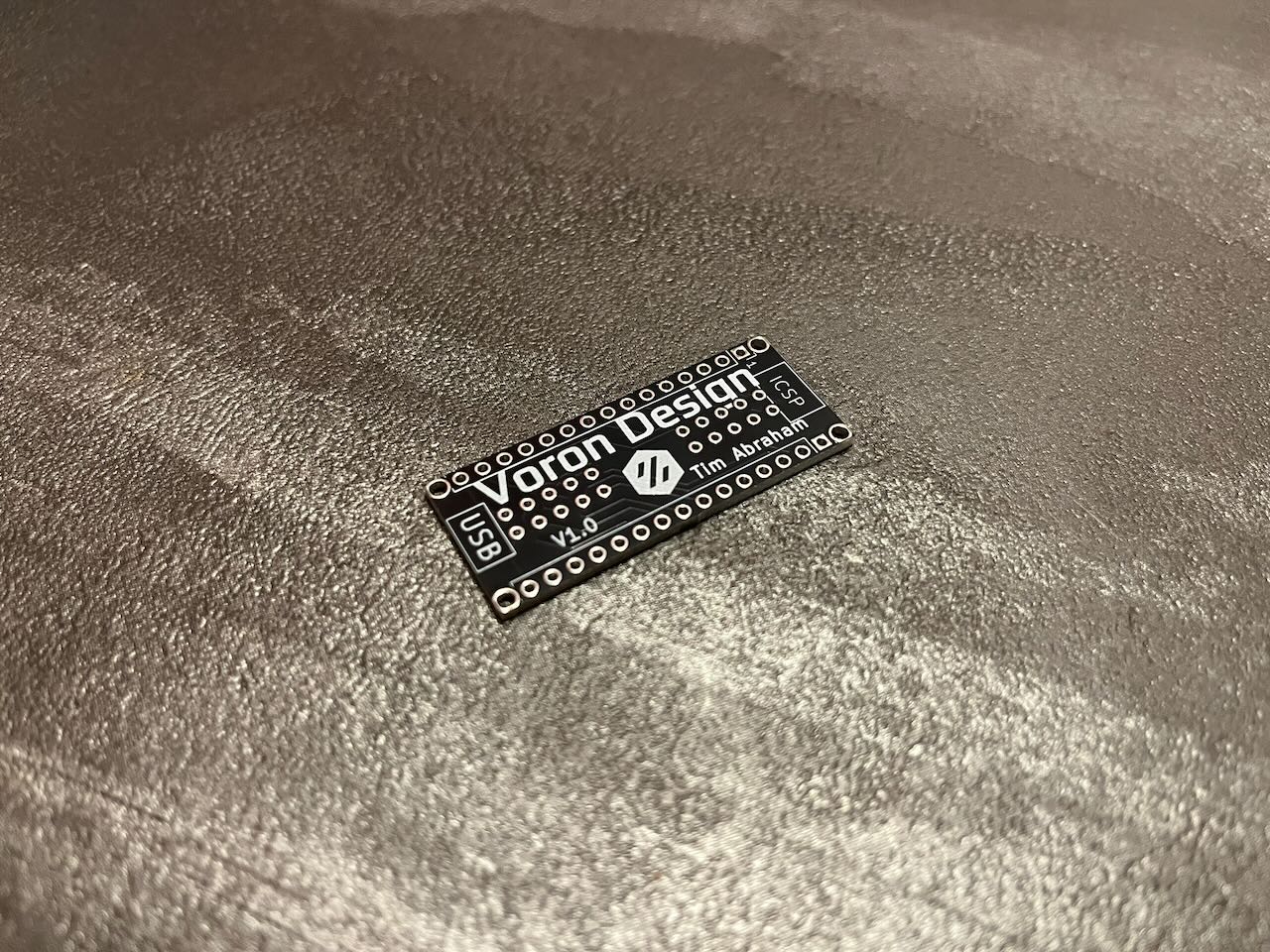

Nano Display

Sourcing Parts

PCB

Connectors

Misc

Printing Parts

Flashing

Klipper Firmware Configuration

USB

cd ~/klipper/
make clean
make menuconfig KCONFIG_CONFIG=config.arduino_nano

Set the following configuration:

(Top)Klipper Firmware Configuration[ ] Enable extra low-level configuration options    Micro-controller Architecture (Atmega AVR)  --->    Processor model (atmega328p)  --->     Optional features (to reduce code size)  --->  [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menu

As the firmware is too large to fit in the supplied flash, we also need to disable some features:

(Top) → Optional features (to reduce code size)Klipper Firmware Configuration[*] Support micro-controller based ADC (analog to digital) [*] Support communicating with external chips via SPI bus[*]     Support software based SPI "bit-banging"[ ] Support communicating with external chips via I2C bus[ ] Support hardware PWM (pulse width modulation)[*] Support GPIO based button reading[ ] Support Trinamic stepper motor driver UART communication[*] Support 'neopixel' type LED control[ ] Support measuring fan tachometer GPIO pins    *** LCD chips ***[*] Support ST7920 LCD display[*] Support HD44780 LCD display    *** Accelerometer chips ***[ ] Support adxl accelerometers[ ] Support lis2dw and lis3dh 3-axis accelerometers[ ] Support BMI160 accelerometer    *** External ADC type chips ***[ ] Support thermocouple MAX sensors[ ] Support HX711 and HX717 ADC chips[ ] Support ADS 131M02/M04 ADC chips[ ] Support ADS 1220 ADC chip    *** Other external sensor chips ***[ ] Support angle sensors    *** Other features ***[ ] Support for homing/probing events using analog sensors  [Space/Enter] Toggle/enter [?] Help [/] Search[Q] Quit (prompts for save) [ESC] Leave menu

Backup config, Build and Flash to the board:

cp config.arduino_nano ../printer_data/config/Firmware/
make KCONFIG_CONFIG=config.arduino_nano -j4
make KCONFIG_CONFIG=config.arduino_nano flash FLASH_DEVICE=/dev/serial/by-id/usb-1a86_USB_Serial-if00-port0

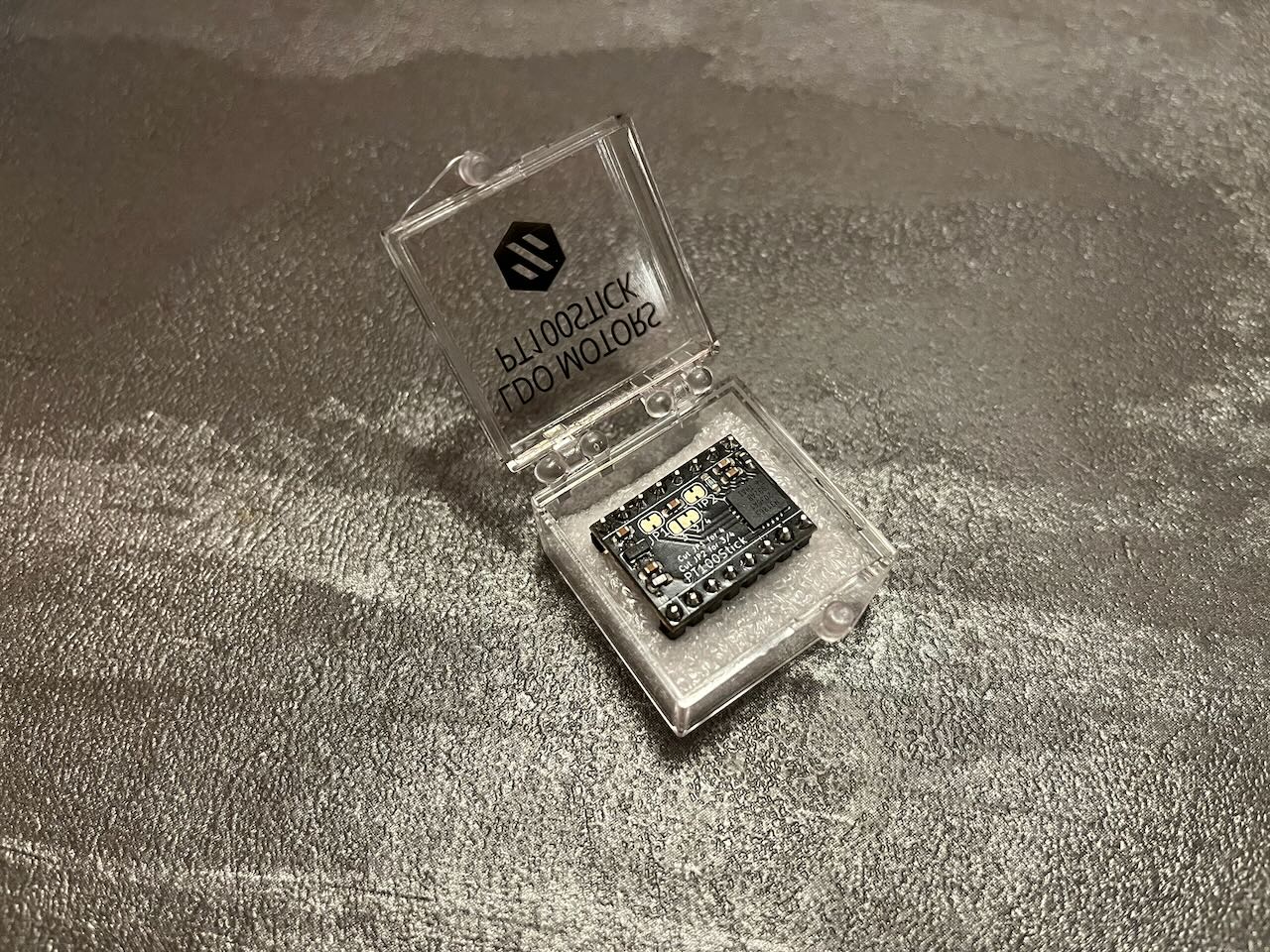

PT100 Stick

Assembly

I purchased this already assembled.

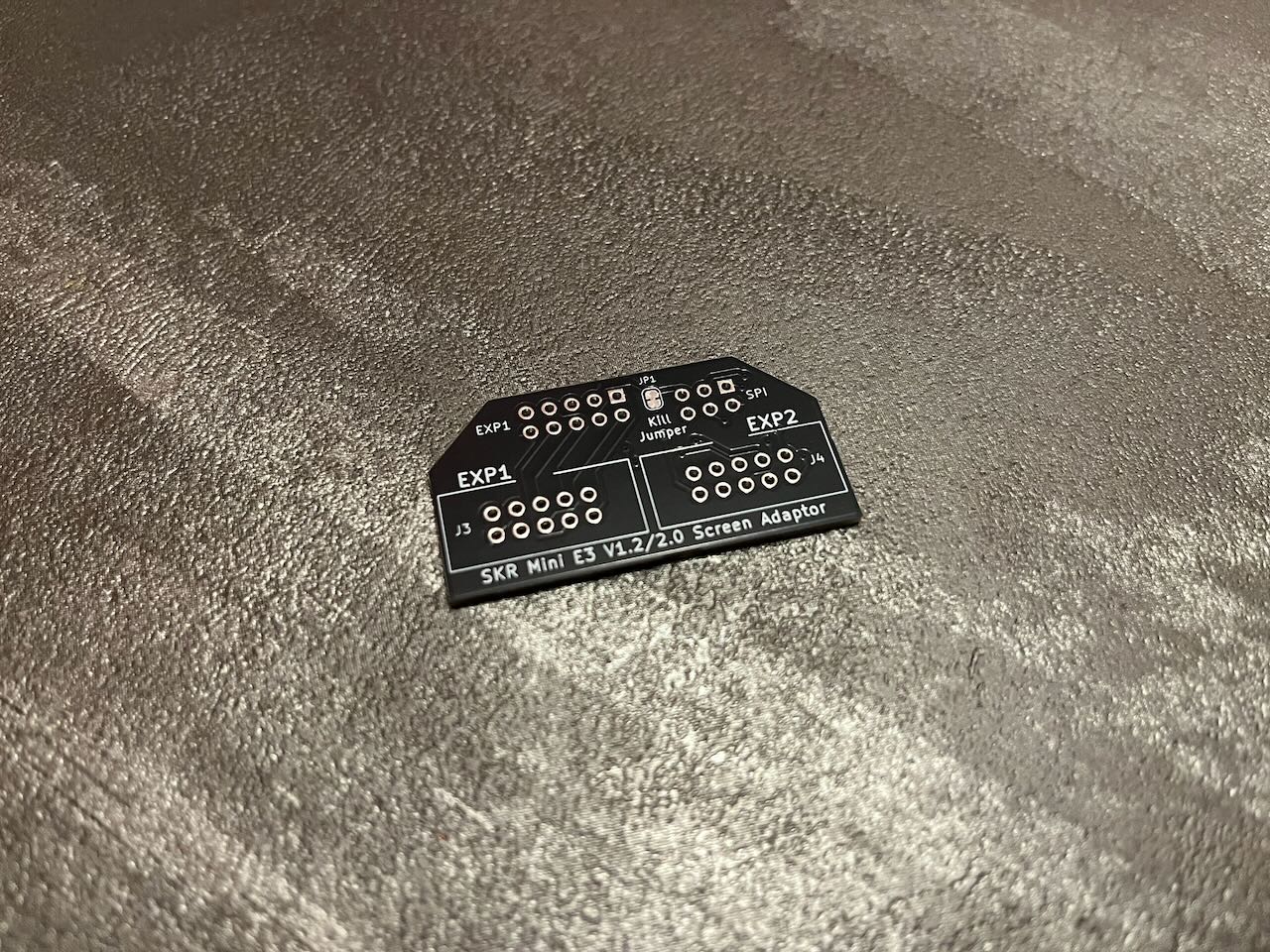

SKR Mini E3 V1.2/2.0 Screen Adaptor

Sourcing Parts

PCB

Connectors

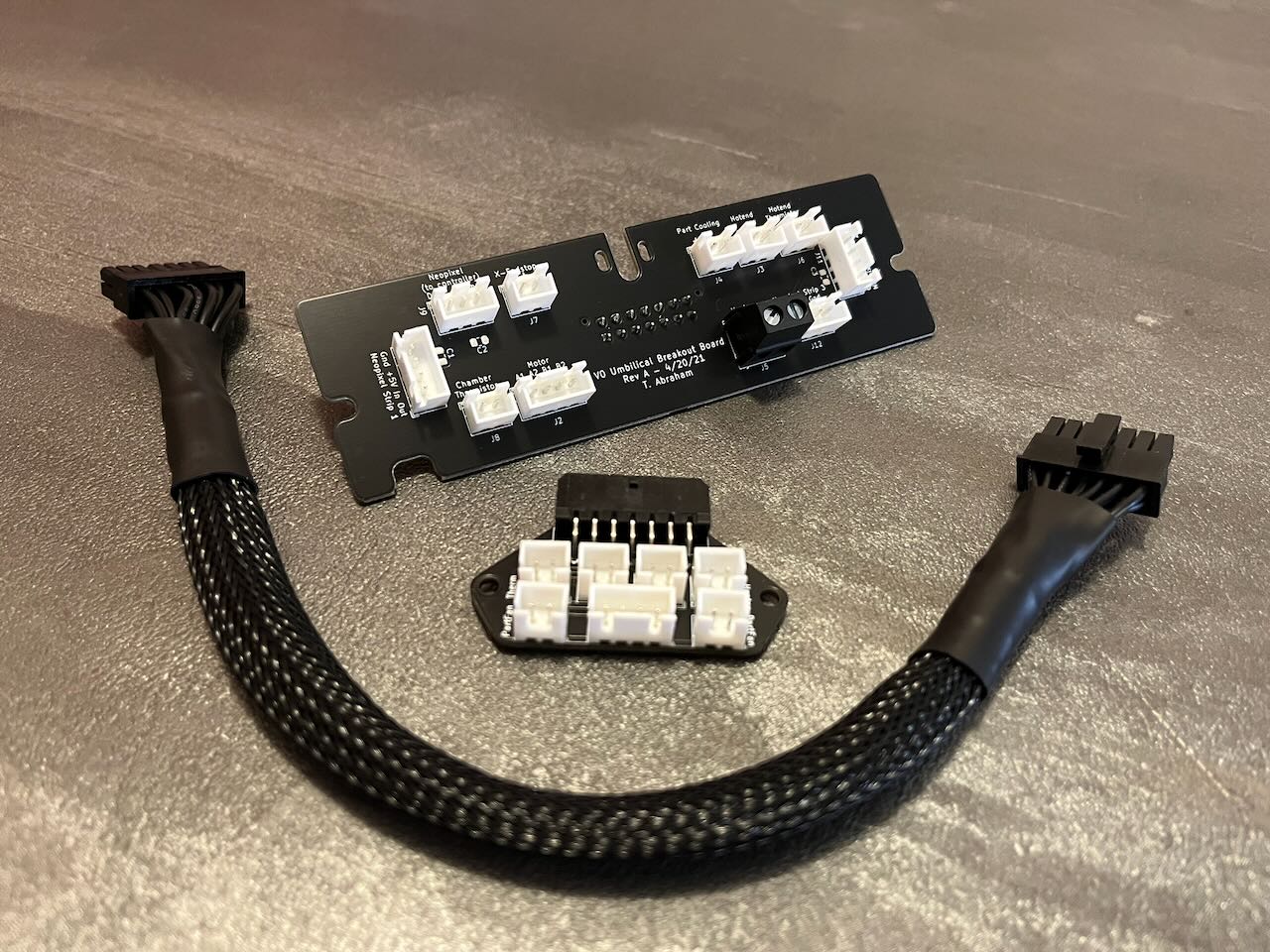

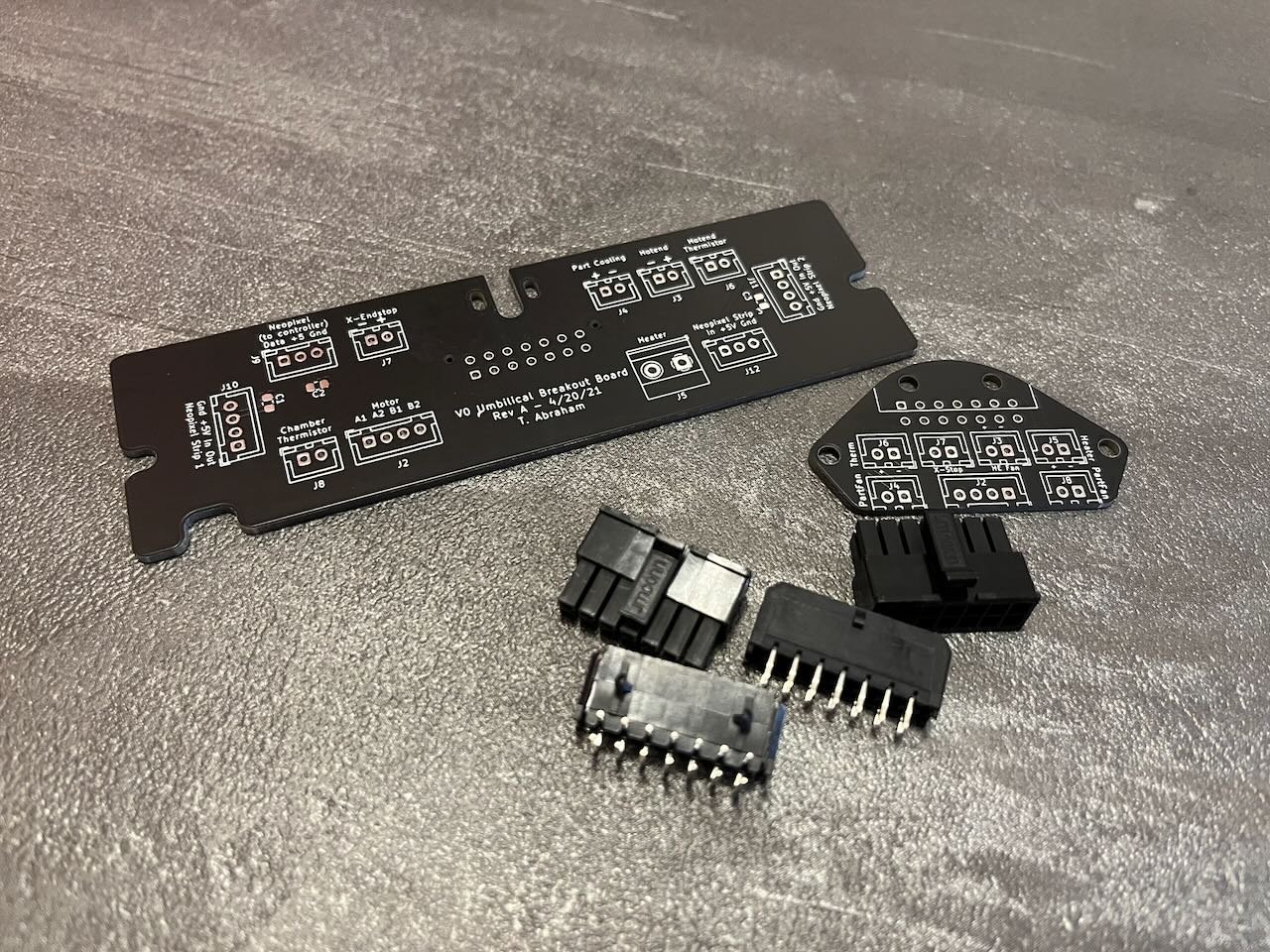

V0 Umbilical

Sourcing Parts

PCB

Frame PCB Connectors

Toolhead PCB Connectors
